Description

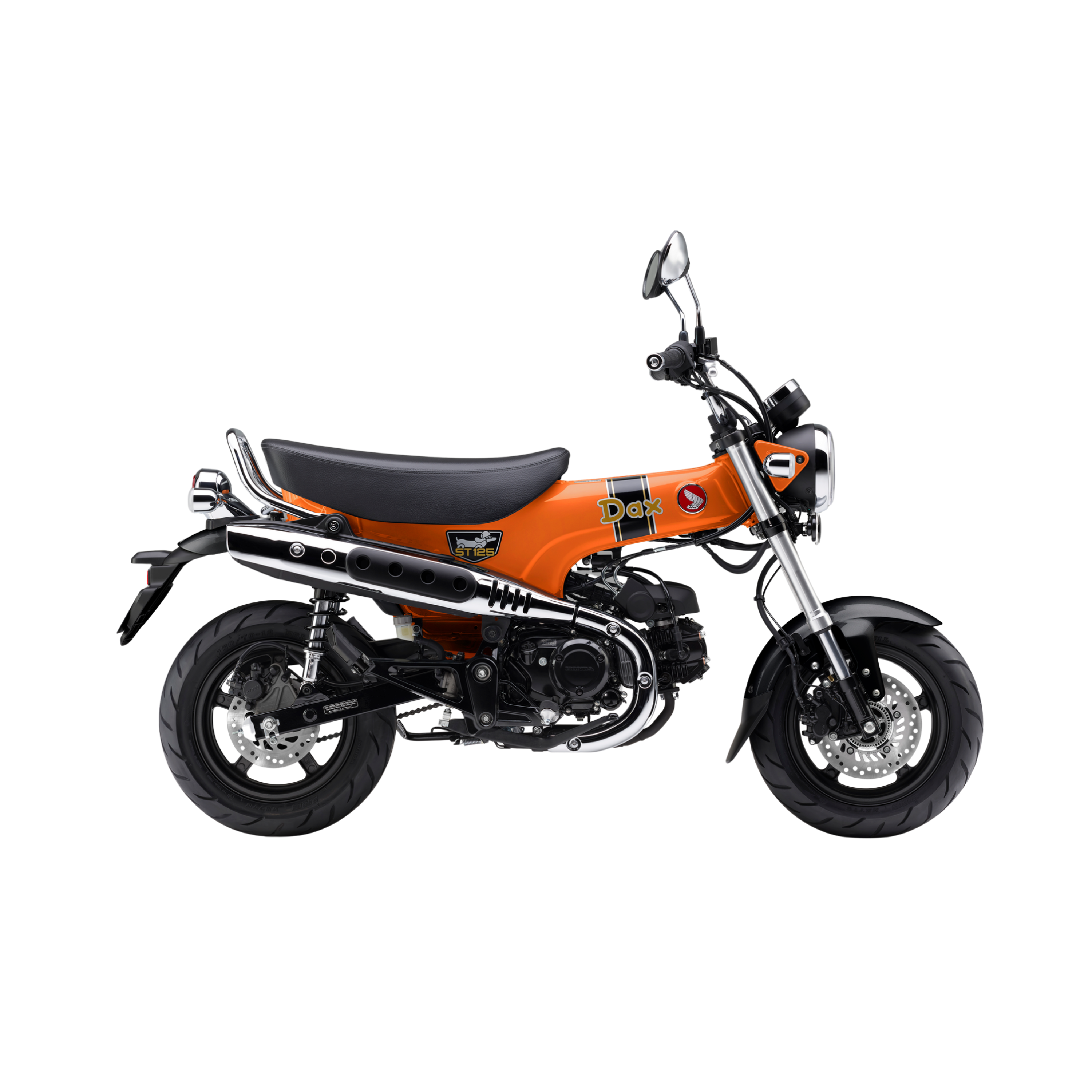

The Honda ST125 DAX is a compact 125cc motorcycle featuring a retro-inspired design and a steel T-shaped frame. It is designed for urban riding and relaxed everyday use, combining a low seat height with lightweight handling and a semi-automatic clutch operation.
Engine
| Specification |
Detail |
| Engine type |
Air-cooled 4-stroke SOHC single-cylinder |
| Displacement |
124 cc |
| Bore x Stroke |
50.0 mm x 63.1 mm |
| Compression ratio |
10.0:1 |
| Fuel system |
PGM-FI electronic fuel injection |
| Max power |
6.9 kW @ 7,000 rpm |
| Max torque |
10.8 Nm @ 5,000 rpm |
| Starter |
Electric |
| CO₂ emissions |
35 g/km |
| Oil capacity |
1.0 L |
Drivetrain
| Specification |
Detail |
| Transmission |
4-speed |
| Clutch |
Automatic centrifugal clutch |
| Final drive |
Chain |
Chassis
| Specification |
Detail |
| Frame type |
Pressed steel backbone frame |
| Front suspension |
31 mm upside-down telescopic fork |
| Rear suspension |
Twin rear shock absorbers |
| Front brake |
220 mm hydraulic disc |
| Rear brake |
190 mm hydraulic disc |
| ABS |
Single-channel ABS |
Wheels & Tyres
| Specification |
Detail |
| Front wheel |
12-inch |
| Rear wheel |
12-inch |
| Front tyre |
120/70-12 |
| Rear tyre |
130/70-12 |
Dimensions & Weight
| Specification |
Detail |
| Length x Width x Height |
1,760 x 760 x 1,020 mm |
| Wheelbase |
1,200 mm |
| Seat height |
775 mm |
| Ground clearance |
180 mm |
| Kerb weight |
107 kg |
| Fuel tank capacity |
3.8 L |
| Turning radius |
1.9 m |
Performance & Economy
| Specification |
Detail |
| Fuel consumption |
1.5 L/100 km |
| CO₂ emissions |
35 g/km |
Technology & Equipment
| Specification |
Detail |
| Lighting |
Full LED lighting |
| Instrument display |
LCD digital display |
| ABS |
Standard (single-channel) |
| Instruments |
Speedometer, fuel gauge, gear indicator, clock |
