€5,999

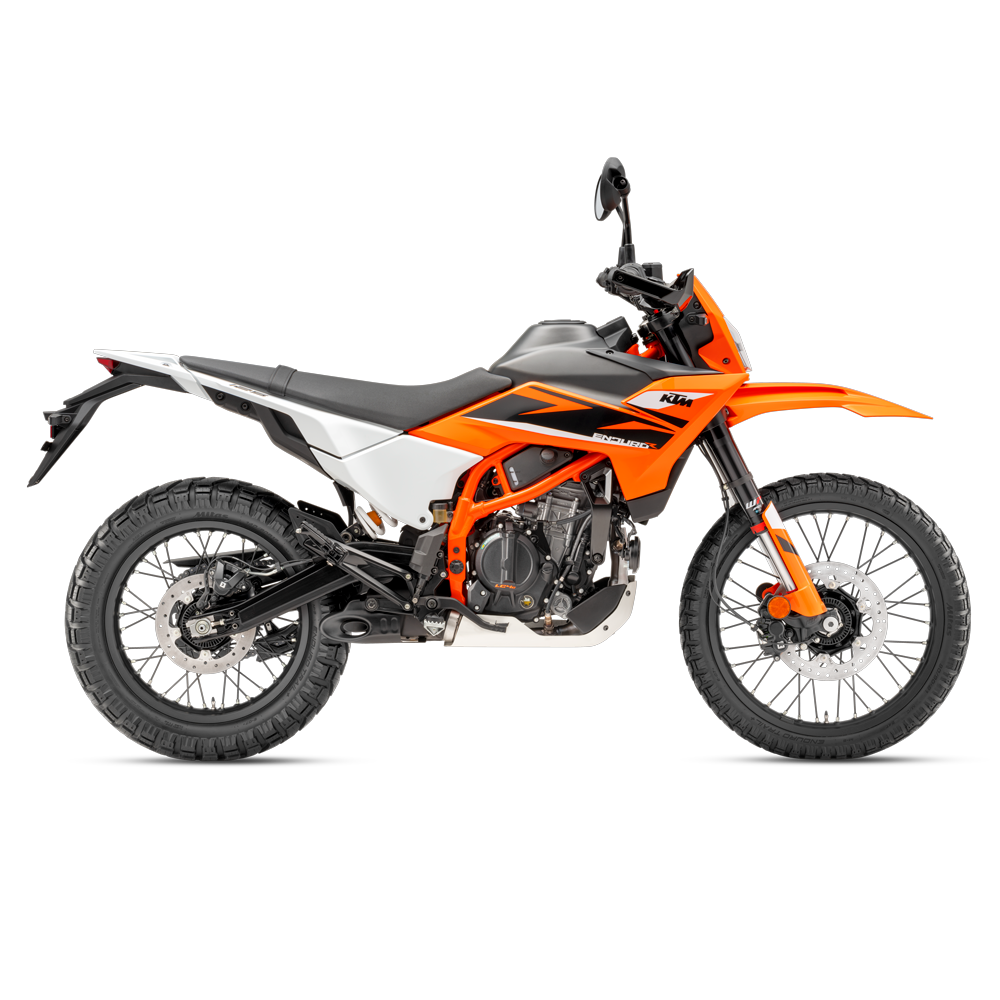

Lightweight handling, ample performance, and massive amounts of fun – that’s what the KTM 125 ENDURO R is all about. Packing state-of-the-art rider aids, top-shelf components, and quality, aggressive, enduro-inspired styling, the KTM 125 ENDURO R is ready to tackle any task on any track.
Description
Engine
Design 1-cylinder, 4-stroke engine
Displacement 124.99 cm³
Power 15 PS
Torque 11.5 Nm
Transmission 6-speed
CO2 emissions 57 g/km
Cooling Liquid cooled
Engine cylinder Single cylinder
EMS Bosch EMS with RBW
Engine oil Motorex Formula 4T 15W/50
Engine stroke 4-Stroke
Chassis
Front brake disc diameter 285 mm
Rear brake disc diameter 240 mm
Front brake Bybre axial floating calipers with 2 pistons
Rear brake Bybre floating caliper 1 piston
Chain 520 X-Ring
Frame design Steel trellis frame, powder coated
Steering head angle 62.9 °
Rear subframe design Bolt on steel trellis frame, powder coated
Trail 107 mm
Wheelbase 1475 mm
Suspension
Front suspension WP APEX open cartridge 43mm
Rear suspension WP APEX split piston
Suspension travel (front) 230 mm
Suspension travel (rear) 230 mm
Front suspension adjustment non adjustable
Rear suspension setting Preload with top ring
Dimensions
Seat height 890 mm
Tank capacity (approx.) 9 l
Ground clearance 272 mm
Weight (without fuel) 152 kg
Weight fully fueled 158 kg
Front wheel diameter 21 “
Rear wheel diameter 18 “
Front wheel width 1.85 “
Rear wheel width 2.5 “
Wheels 1.85 x 21″; 2.5 x 18″
