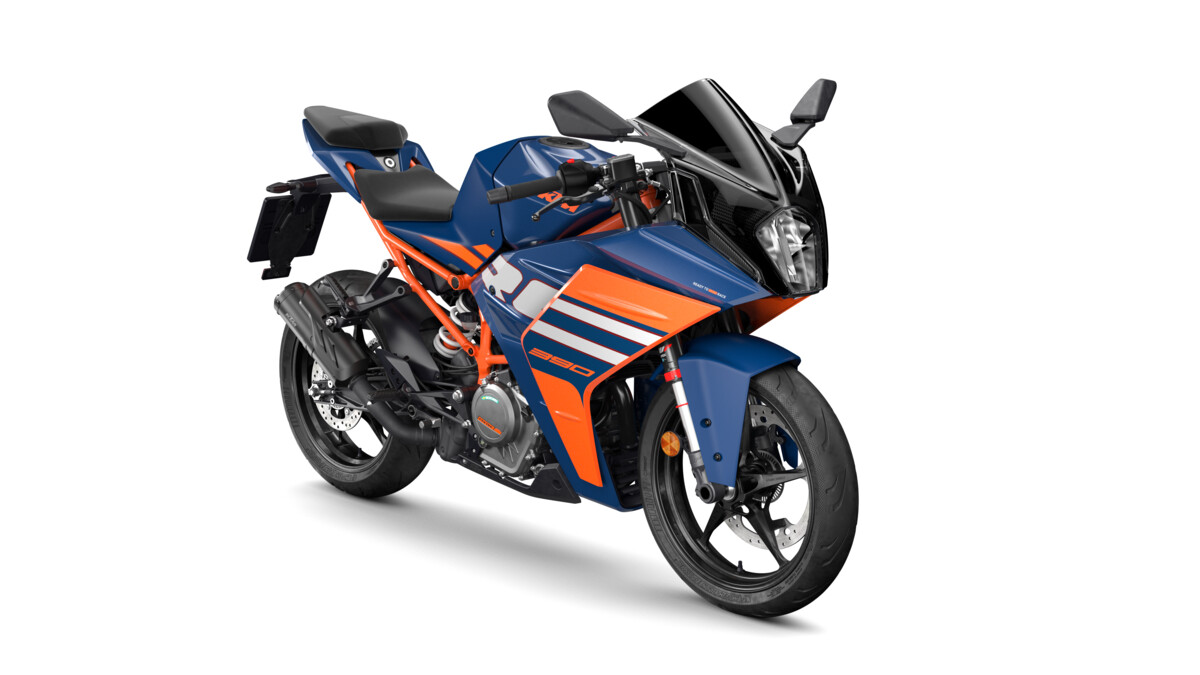

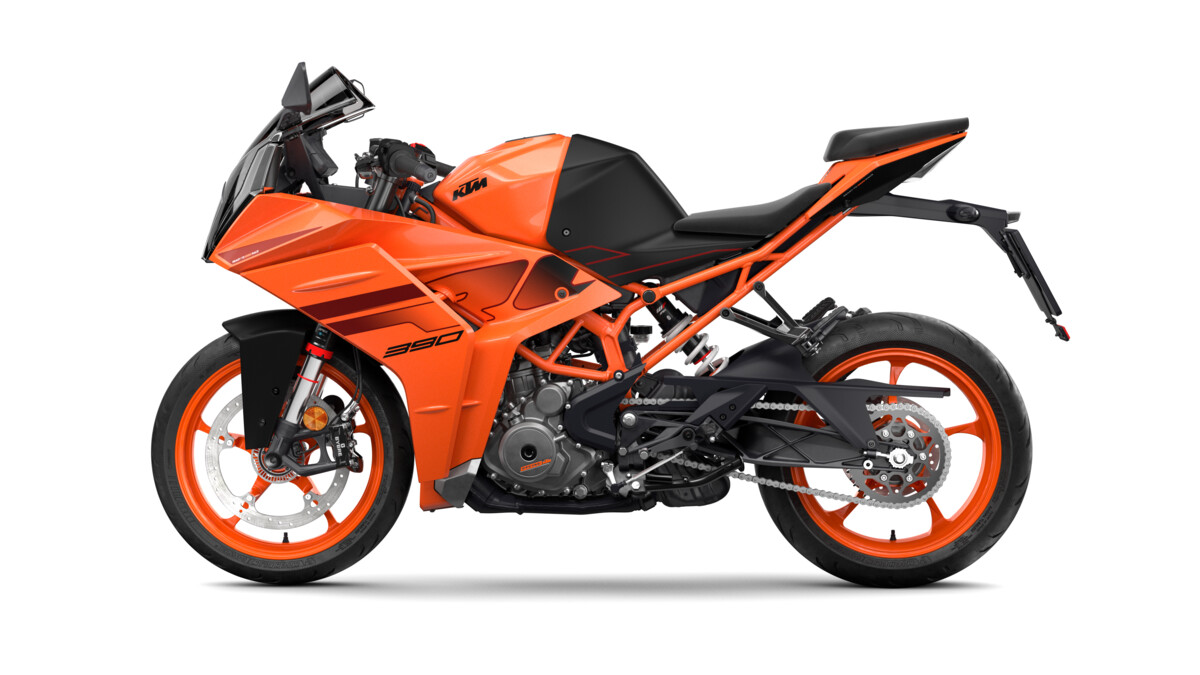

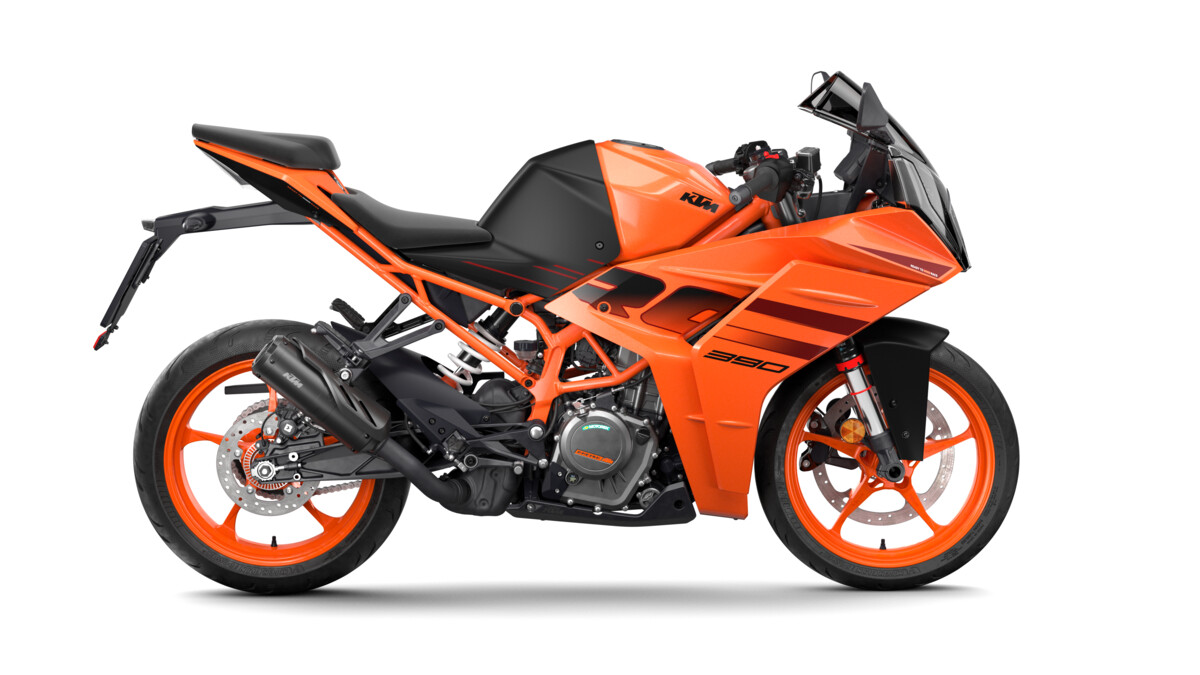

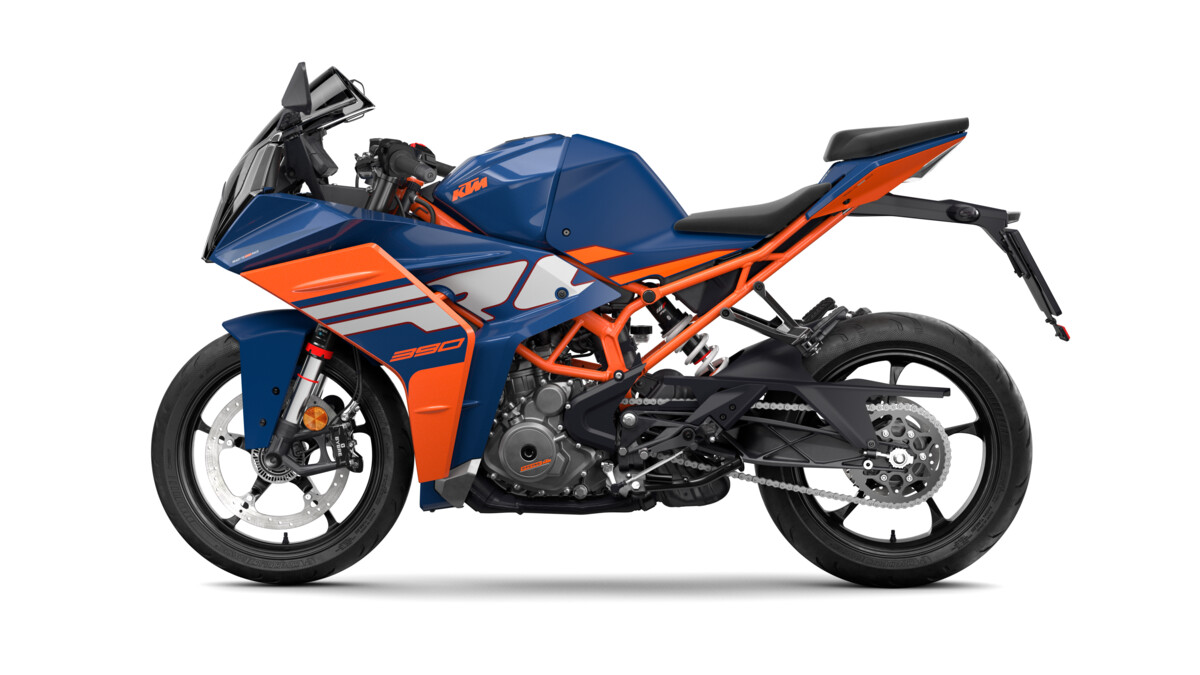

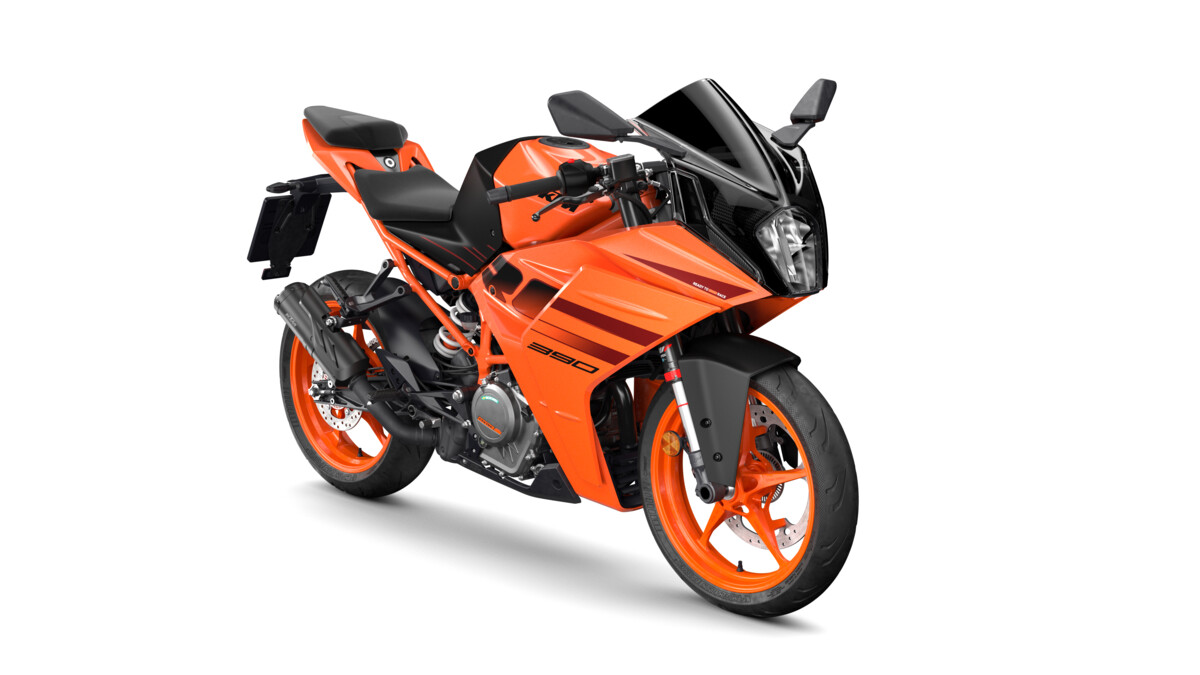

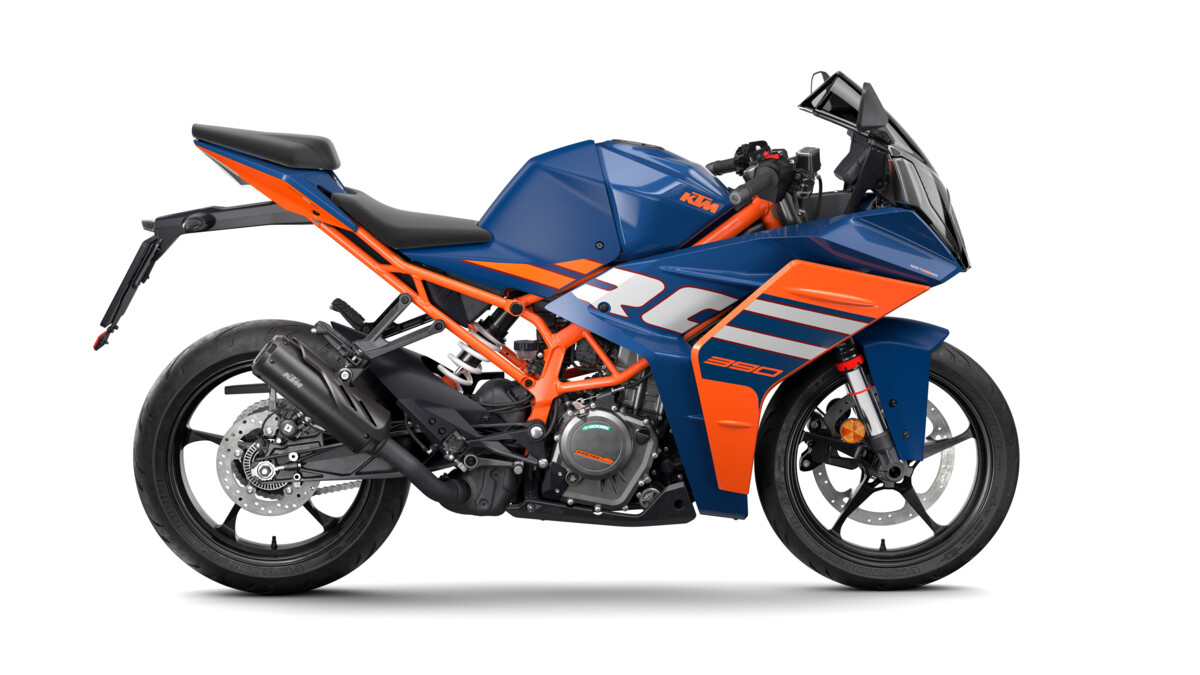

KTM RC 390 2024

7,799

The 2024 KTM RC 390 is a high-performance Supersports machine with its roots firmly planted on the race track. Featuring an impressive technology package, as well as race-derived styling, handling characteristics, and addictive power delivery, the KTM RC 390 is a real-world racer with undoubted pedigree.

Categories: , , ,

Description

TECHNICAL DETAILS

ENGINE

  • TORQUE37 Nm
  • TRANSMISSION6-speed
  • COOLINGLiquid cooled
  • POWER IN KW32 kW
  • STARTERElectric starter
  • STROKE60 mm
  • BORE89 mm
  • CLUTCHPASC™ antihopping clutch, mechanically operated
  • DISPLACEMENT373 cm³
  • EMSBosch EMS with RBW
  • DESIGN1-cylinder, 4-stroke engine
  • LUBRICATIONWet sump

CHASSIS

  • TANK CAPACITY (APPROX.)13.7 l
  • ABSBosch 9.1MP Two Channel ABS (Supermoto ABS)
  • FRONT BRAKE DISC DIAMETER320 mm
  • REAR BRAKE DISC DIAMETER230 mm
  • FRONT BRAKEFour-piston radial fixed calliper, brake disc
  • REAR BRAKESingle-piston floating calliper, brake disc
  • CHAIN520 X-Ring
  • FRAME DESIGNSteel trellis frame, powder coated
  • FRONT SUSPENSIONWP APEX 43
  • GROUND CLEARANCE158 mm
  • REAR SUSPENSIONWP APEX – Monoshock
  • SEAT HEIGHT824 mm
  • STEERING HEAD ANGLE66.5 °
  • SUSPENSION TRAVEL (FRONT)120 mm
  • SUSPENSION TRAVEL (REAR)150 mm
