€3,999

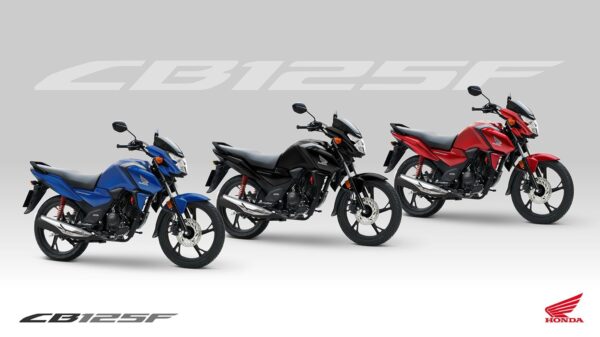

The 24YM CB125F will be available in the following colour options:
**NEW** Imperial Red Metallic
**NEW** Matt Marvel Blue Metallic
Black
Description
| ENGINE | |
| Type | Air cooled 4 stroke OHC single cylinder |
| Displacement | 124cc |
| No of Valves per Cylinder | 2 |
| Bore & Stroke | 50 x 63.1mm |
| Compression Ratio | 10.0:1 |
| Max. Power Output | 8kW @7,500rpm |
| Max. Torque | 10.9Nm @ 6,000rpm |
| Noise level (dB) | Lurban – 67dB, Lwot – 68.2dB |
| Oil Capacity | 1L |
| FUEL SYSTEM | |
| Carburation | PGM-FI electronic fuel injection |
| Fuel Tank Capacity | 11L |
| Fuel Consumption (WMTC) | 71.4 km/L (1.4 l/100km) |
| CO2 Emissions WMTC | 32g/km |
| ELECTRICAL SYSTEM | |
| Battery Capacity | 12V 6A-h(10h) |
| DRIVETRAIN | |
| Clutch Type | Wet, multiplate with coil springs |
| Transmission Type | Manual 5 speed |
| Final Drive | Chain |
| FRAME | |
| Type | Tubular steel |
| CHASSIS | |
| Dimensions (L´W´H) | 2,020mm x 751mm x 1,103mm |
| Wheelbase | 1,285mm |
| Caster Angle | 26° |
| Trail | 92.4mm |
| Seat Height | 790mm |
| Ground Clearance | 160mm |
| Kerb Weight | 116KG |
| Turning radius | 2.04m |
| SUSPENSION | |
| Type Front | 30mm telescopic |
| Type Rear | Dual shocks – 5 stage preload |
| WHEELS | |
| Type Front | 18in five spoke aluminium 18M/C x MT1.85 |
| Type Rear | 18in five spoke aluminium 18M/C x MT2.15 |
| Tyres Front | 80 / 100 18M/C 47P |
| Tyres Rear | 100/80 18M/C 53P |
| BRAKES | |
| System Type | CBS |
| Type Front | 240mm single disc with single piston caliper |
| Type Rear | 130mm drum |
| INSTRUMENTS & ELECTRICS | |
| Instruments | LCD Meter with Speedometer, milometer, fuel gauge, rpm counter, gear position indicator |
| Headlight | LED |
| Taillight | LED |
| Connectivity | No |
| USB | No |
| 12V Socket | No |
| Auto Winker Cancel | No |
| Quickshifter | No |
| Security System | No |
| Cruise Control | No |
| Cornering Lights | No |
