€15,099

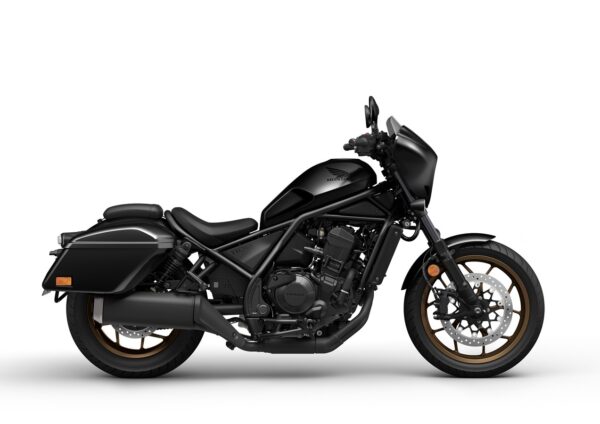

The standard 24YM CMX1100 Rebel will be available in the following colour options: **NEW** Glint Wave Blue Metallic **NEW** Iridium Gray Metallic The CMX1100T Rebel will be available in the following colour option: Gunmetal Black Metallic with NEW bronze wheels
Description
| ENGINE | |
| Type | SOHC liquid-cooled 4-stroke 8-valve parallel twin with 270° crank and Uni-cam. |
| Displacement | 1084cc |
| Bore & Stroke | 92mm x 81.5mm |
| Compression Ratio | 10.1:1 |
| Max. Power Output | 64kW at 7,000rpm |
| Max. Torque | 98Nm at 4,750rpm |
| Oil Capacity | 4.8/4.3 (5.2/4.7 DCT) |
| FUEL SYSTEM | |
| Carburation | PGM-FI electronic fuel injection |
| Fuel Tank Capacity | 13.6L |
| Fuel Consumption | 20.4km/l (4.9L/100km) – MT and DCT |
| Noise levels (dB) | Lurban75.7dB, Lwot79.6dB – MT; Lurban 75.5dB, Lwot 79.9dB – DCT |
| CO2 Emissions | 114g/km – MT and DCT |
| ELECTRICAL SYSTEM | |
| Starter | Electric |
| Battery Capacity | 12V/11.2AH |
| ACG Output | 0.419kW |
| DRIVETRAIN | |
| Clutch Type | MT：Wet multiplate clutchDCT: Wet multiplate hydraulic 2-clutch |
| Transmission Type | MT: 6-speed Manual TransmissionDCT: 6-speed Dual Clutch Transmission |
| Final Drive | Chain |
| FRAME | |
| Type | Diamond |
| CHASSIS | |
| Dimensions (L x W x H) | 2240mm x 853mm x 1115mm – MT 2240mm x 834mm x 1115mm – DCT |
| Wheelbase | 1,520mm |
| Caster Angle / Fork Angle | 28° / 30° |
| Trail | 110mm |
| Seat Height | 700mm |
| Ground Clearance | 120mm |
| Kerb Weight | CMX1100 Rebel – MT: 223kg / DCT 233kgCMX1100T Rebel – MT: 238kg / DCT 248kg |
| SUSPENSION | |
| Type Front | Preload adjustable 43mm cartridge style |
| Type Rear | Preload adjustable twin piggyback rear shock |
| WHEELS | |
| Type Front | Multi-spoke cast aluminium |
| Type Rear | Multi-spoke cast aluminium |
| Rim Size Front | MT3.50 |
| Rim Size Rear | MT5.00 |
| Tyres Front | 130/70B18 M/C |
| Tyres Rear | 180/65B16 M/C |
| BRAKES | |
| ABS System Type | 2-channel ABS |
| Type Front | Radial mounted monoblock four-piston brake caliper, 330mm floating single disc |
| Type Rear | Single piston caliper, 256mm single disc |
| INSTRUMENTS & ELECTRICS | |
| Instruments | Offset 120mm negative LCD instrument display, USB-C charger |
| Security System | HISS |
| Headlight | LED |
| Taillight | LED |
