Description

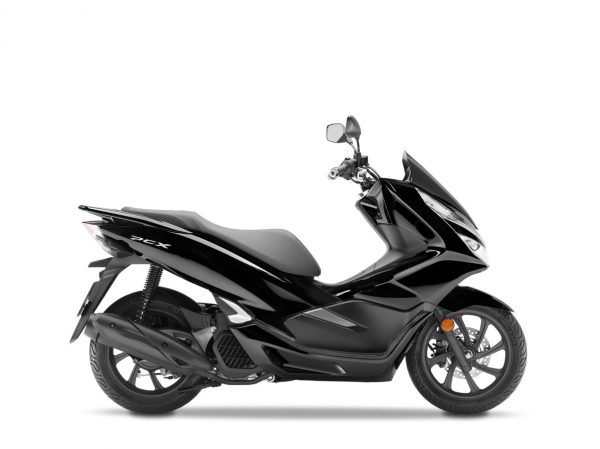

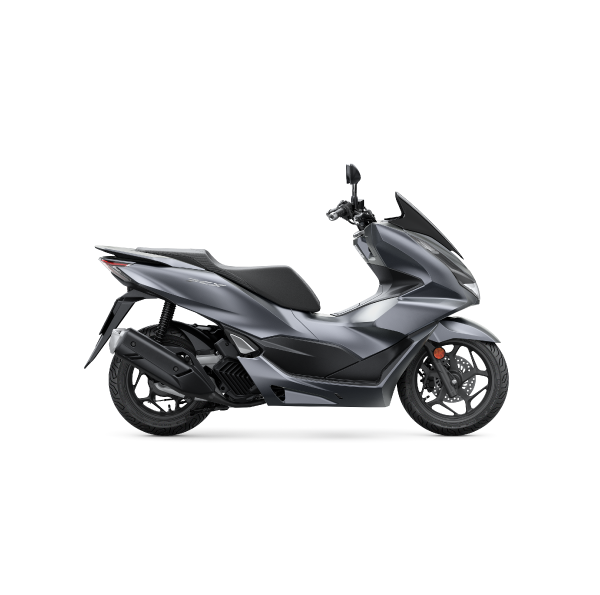

The Honda PCX125 A/DX TFT is a 125cc scooter designed for urban commuting and everyday use. It is powered by a liquid-cooled eSP+ engine and features a CVT automatic transmission for simple riding. The DX variant adds a 5-inch TFT display with smartphone connectivity.
Engine
| Specification |
Detail |
| Engine type |
Liquid-cooled 4-stroke SOHC 4-valve single-cylinder (eSP+) |
| Displacement |
125 cc |
| Bore x Stroke |
53.5 mm x 55.5 mm |
| Compression ratio |
11.5 |
| Fuel system |
PGM-FI electronic fuel injection |
| Max power |
9.2 kW @ 8,750 rpm |
| Max torque |
11.7 Nm @ 6,500 rpm |
| Starter |
Electric |
| CO₂ emissions |
49 g/km |
| Oil capacity |
0.9 L |
| Max speed |
98 km/h |
Drivetrain
| Specification |
Detail |
| Transmission |
CVT automatic |
| Clutch |
Automatic centrifugal clutch |
| Final drive |
V-belt |
Chassis
| Specification |
Detail |
| Frame type |
Tubular steel underbone |
| Front suspension |
31 mm telescopic fork |
| Rear suspension |
Twin shock absorbers |
| Front brake |
220 mm disc, ABS |
| Rear brake |
220 mm disc |
| ABS |
Single-channel ABS |
Wheels & Tyres
| Specification |
Detail |
| Front wheel |
14-inch |
| Rear wheel |
13-inch |
| Front tyre |
110/70-14 |
| Rear tyre |
130/70-13 |
Dimensions & Weight
| Specification |
Detail |
| Length x Width x Height |
1,935 x 740 x 1,125 mm |
| Wheelbase |
1,315 mm |
| Seat height |
763 mm |
| Ground clearance |
135 mm |
| Kerb weight |
134 kg |
| Fuel tank capacity |
8.1 L |
Performance & Economy
| Specification |
Detail |
| Fuel consumption |
2.1 L/100 km |
| CO₂ emissions |
49 g/km |
Technology & Equipment (DX TFT)
| Specification |
Detail |
| Display |
5-inch TFT multi-information display |
| Connectivity |
Honda RoadSync |
| Lighting |

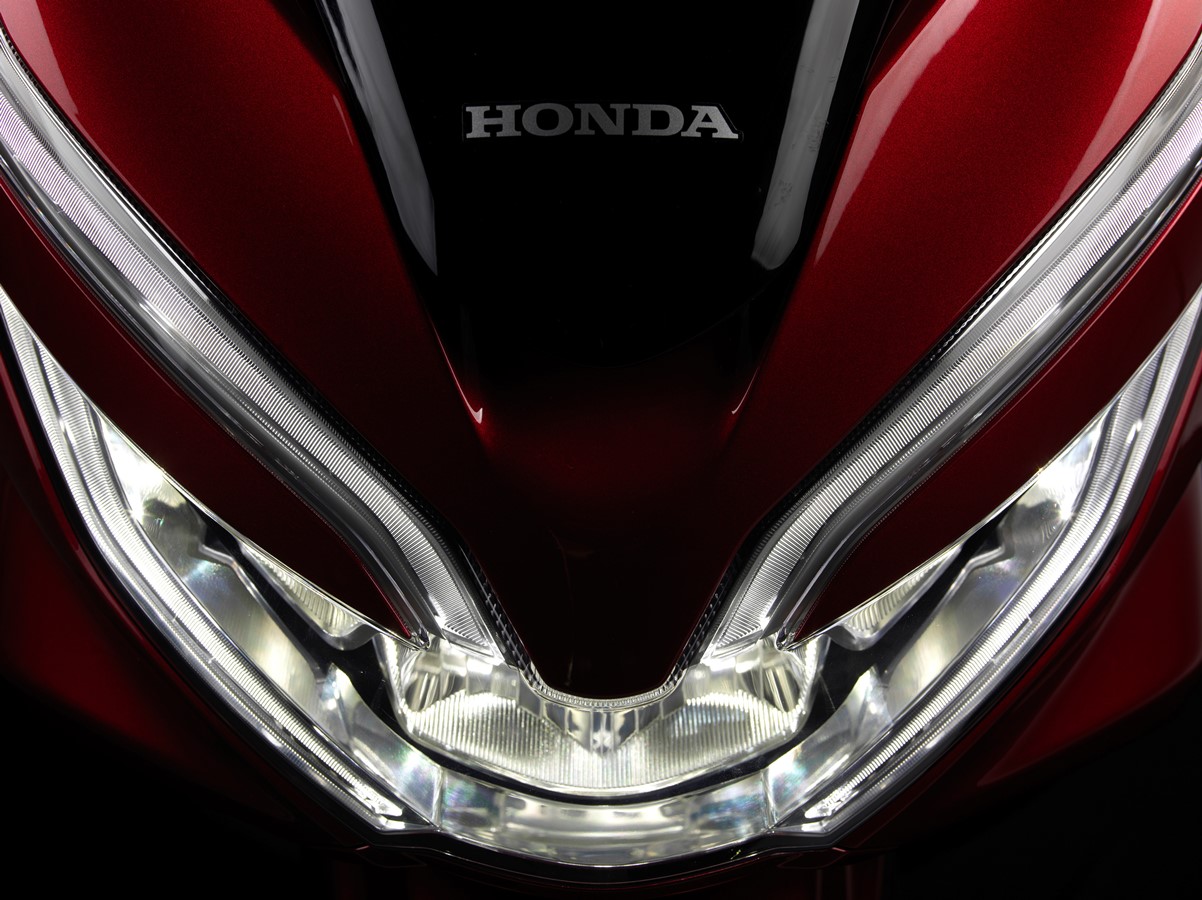

LED lighting |
| Smart Key |
Standard |
| USB socket |
USB-C |
| Storage |
Under-seat storage (30.4L) |

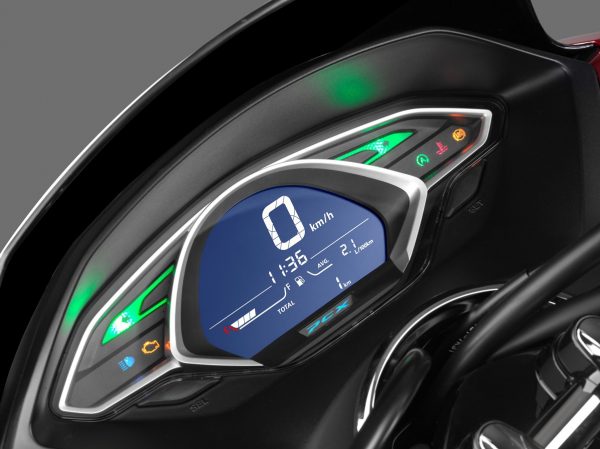

| Instruments |
Speedometer, fuel gauge, trip info, clock |
