Description

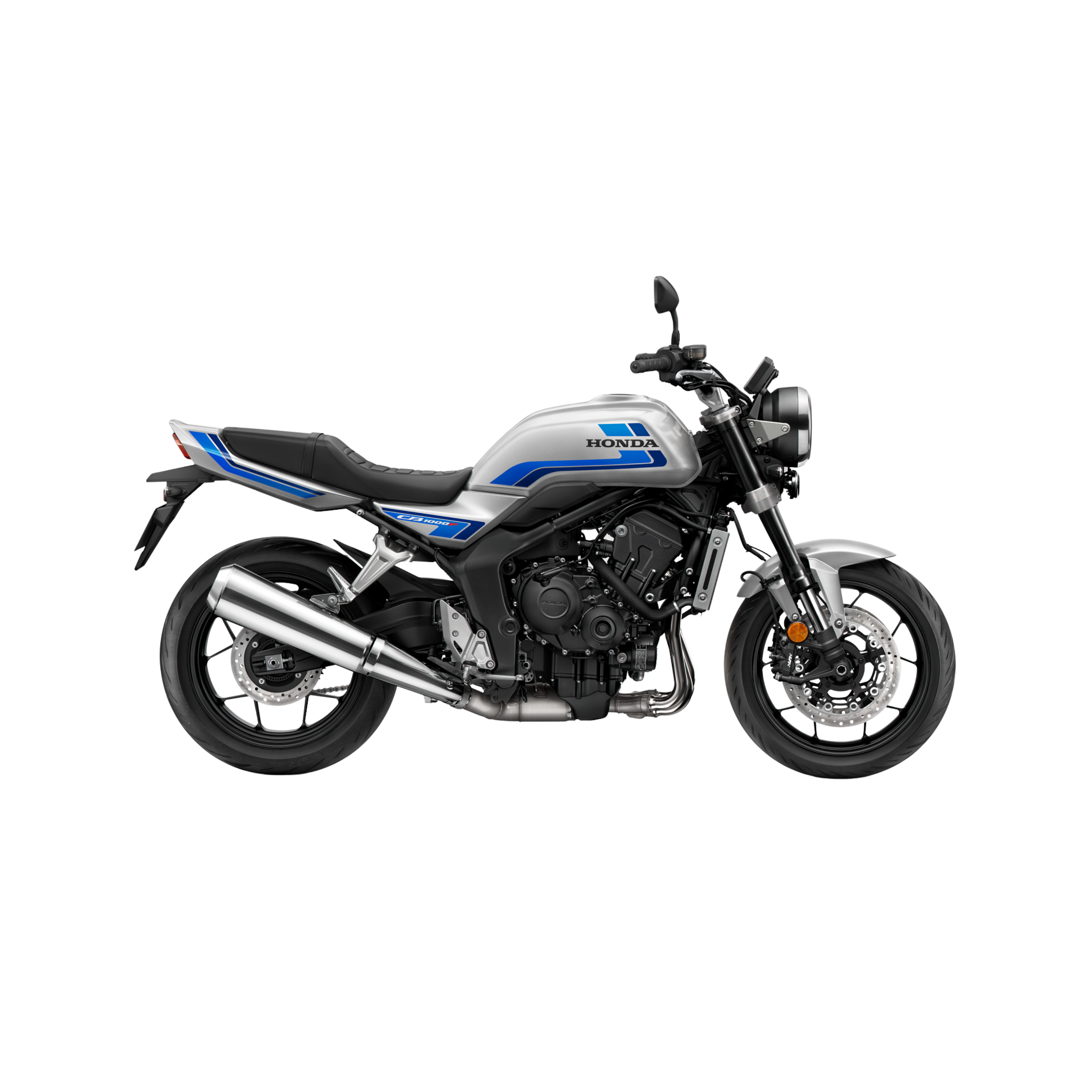

The Honda CB1000F is a 1000cc naked motorcycle featuring a liquid-cooled inline four-cylinder engine and a steel diamond frame. It is designed as a retro-inspired roadster combining modern electronics with a high-capacity four-cylinder platform.
Engine
| Specification |
Detail |
| Engine type |
Liquid-cooled DOHC 4-stroke 16-valve inline 4-cylinder |
| Displacement |
1000 cc |
| Bore x Stroke |
76 mm × 55.1 mm |
| Compression ratio |
11.7 |
| Fuel system |
PGM-FI fuel injection |
| Max power |
91.0 kW @ 9,000 rpm |
| Max torque |
103 Nm @ 8,000 rpm |
| Starter |
Electric starter |
| CO₂ emissions |
129 g/km |
| Oil capacity |
3.0 L (lower) / 3.5 L (upper) |
Drivetrain
| Specification |
Detail |
| Transmission |
6-speed manual |
| Clutch |
Wet multiplate, assist & slipper clutch |
| Final drive |
Chain |
Chassis
| Specification |
Detail |
| Frame type |
Diamond frame |
| Front suspension |
41 mm Showa USD SFF-BP fork (130 mm travel) |
| Rear suspension |
Pro-Link monoshock (140 mm travel) |
| Front brake |
Dual 310 mm discs, radial-mounted 4-piston calipers |
| Rear brake |
Single 240 mm disc |
| ABS |
2-channel cornering ABS |
Wheels & Tyres
| Specification |
Detail |
| Front wheel |
17-inch |
| Rear wheel |
17-inch |
| Front tyre |
120/70ZR17 |
| Rear tyre |
180/55ZR17 |
Dimensions & Weight
| Specification |
Detail |
| Length x Width x Height |
2,135 x 835 x 1,125 mm |
| Wheelbase |
1,455 mm |
| Seat height |
795 mm |
| Ground clearance |
135 mm |
| Kerb weight |
214 kg |
| Fuel tank capacity |
16 L |
| Caster angle |
25° |
| Trail |
98 mm |
Performance & Economy
| Specification |
Detail |
| Fuel consumption |
5.6 L/100 km |
| Turning radius |
2.8 m |
Technology & Equipment
| Specification |
Detail |
| Display |
5-inch TFT multi-information display |
| Lighting |
LED headlights and tail light |
| Connectivity |
Honda RoadSync |
| USB socket |
USB-C |
| Security system |
HISS immobiliser |
| Riding modes |
Standard, Rain, Sport + 2 user modes |
| Safety systems |
HSTC, Wheelie Control, Rear Lift Control |
| Key system |
Honda Smart Key |
| Additional systems |
ESS (Emergency Stop Signal) |
