Description

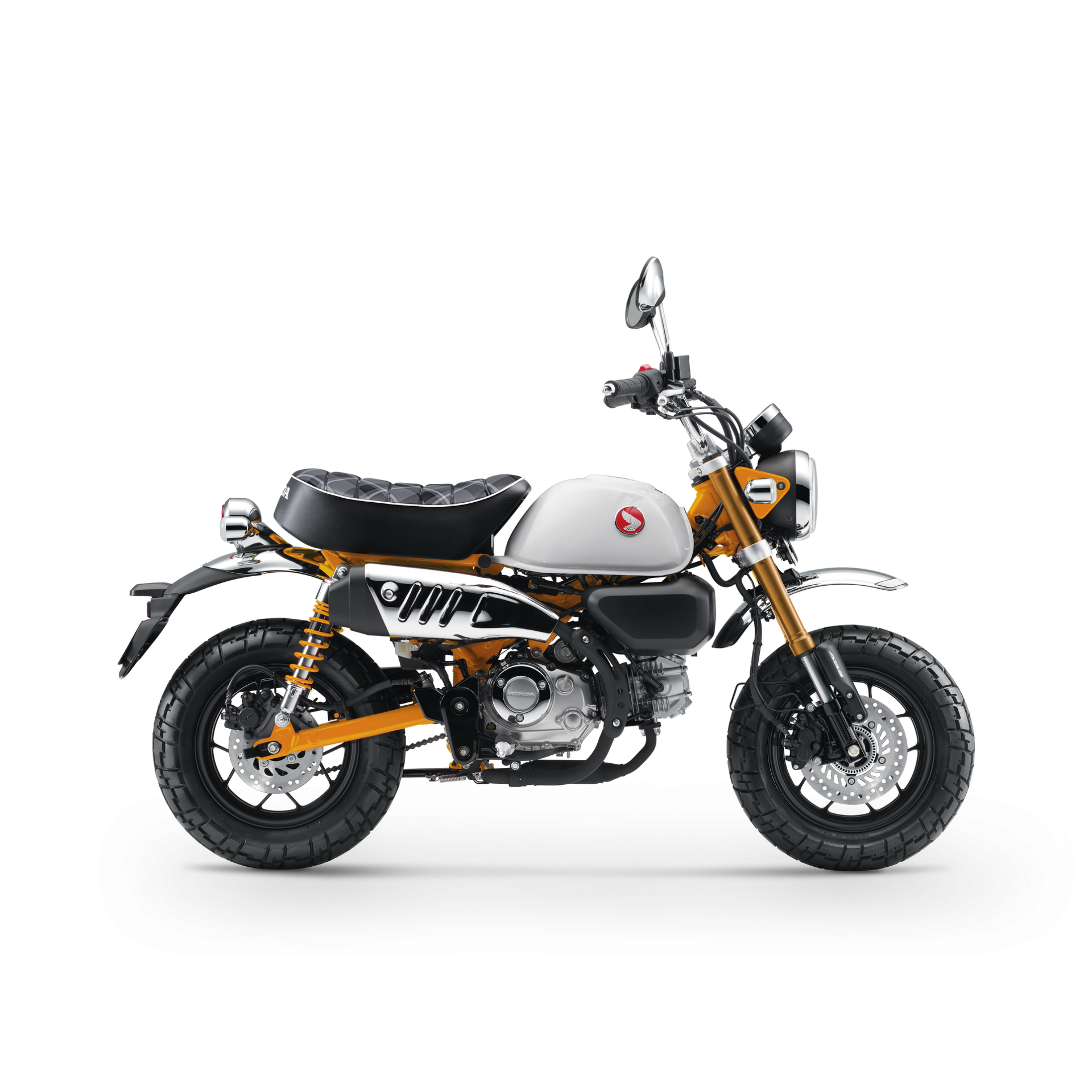

The Honda Z125MA Monkey is a compact 125cc motorcycle designed for urban riding and recreational use. It combines retro-inspired styling with modern features including LED lighting, LCD instrumentation, and a 5-speed gearbox.
The lightweight chassis and compact dimensions are designed to provide easy handling and manoeuvrability for everyday riding.
Engine
| Specification |
Detail |
| Engine type |
Air-cooled 2-valve OHC single cylinder |
| Displacement |
124 cc |
| Bore x Stroke |
50.0 mm x 63.1 mm |
| Compression ratio |
10.0 : 1 |
| Fuel system |
PGM-FI electronic fuel injection |
| Max power |
6.9 kW @ 6,750 rpm |
| Max torque |
10.7 Nm @ 5,500 rpm |
| Starter |
Electric |
| CO₂ emissions |
35 g/km |
| Oil capacity |
1.1 L |
Drivetrain
| Specification |
Detail |
| Transmission |
5-speed |
| Clutch |
Wet multiplate |
| Final drive |
Chain |
Chassis
| Specification |
Detail |
| Frame type |
Steel backbone |
| Front suspension |
USD fork, 100 mm axle travel |
| Rear suspension |
Twin shock, 102 mm axle travel |
| Front brake |
Dual-piston caliper, single 220 mm disc |
| Rear brake |
Single-piston caliper, single 190 mm disc |
| ABS |
Front single-channel ABS |
Wheels & Tyres
| Specification |
Detail |
| Front wheel |
10-spoke cast aluminium |
| Rear wheel |
10-spoke cast aluminium |
| Front tyre |
120/80-12M/C 65J |
| Rear tyre |
130/80-12M/C 69J |
Dimensions & Weight
| Specification |
Detail |
| Length x Width x Height |
1,710 x 755 x 1,030 mm |
| Wheelbase |
1,145 mm |
| Seat height |
776 mm |
| Ground clearance |
175 mm |
| Kerb weight |
105 kg |
| Fuel tank capacity |
5.6 L |
| Caster angle |
25° |
| Trail |
82 mm |
| Turning radius |
1.9 m |
Performance & Economy
| Specification |
Detail |
| Fuel consumption |
1.5 L/100 km |
| CO₂ emissions |
35 g/km |
Technology & Equipment
| Specification |
Detail |
| Headlights |
LED |
| Tail light |
LED |
| Instrument display |
Round LC-Display |
| Security |
Alarm System |
