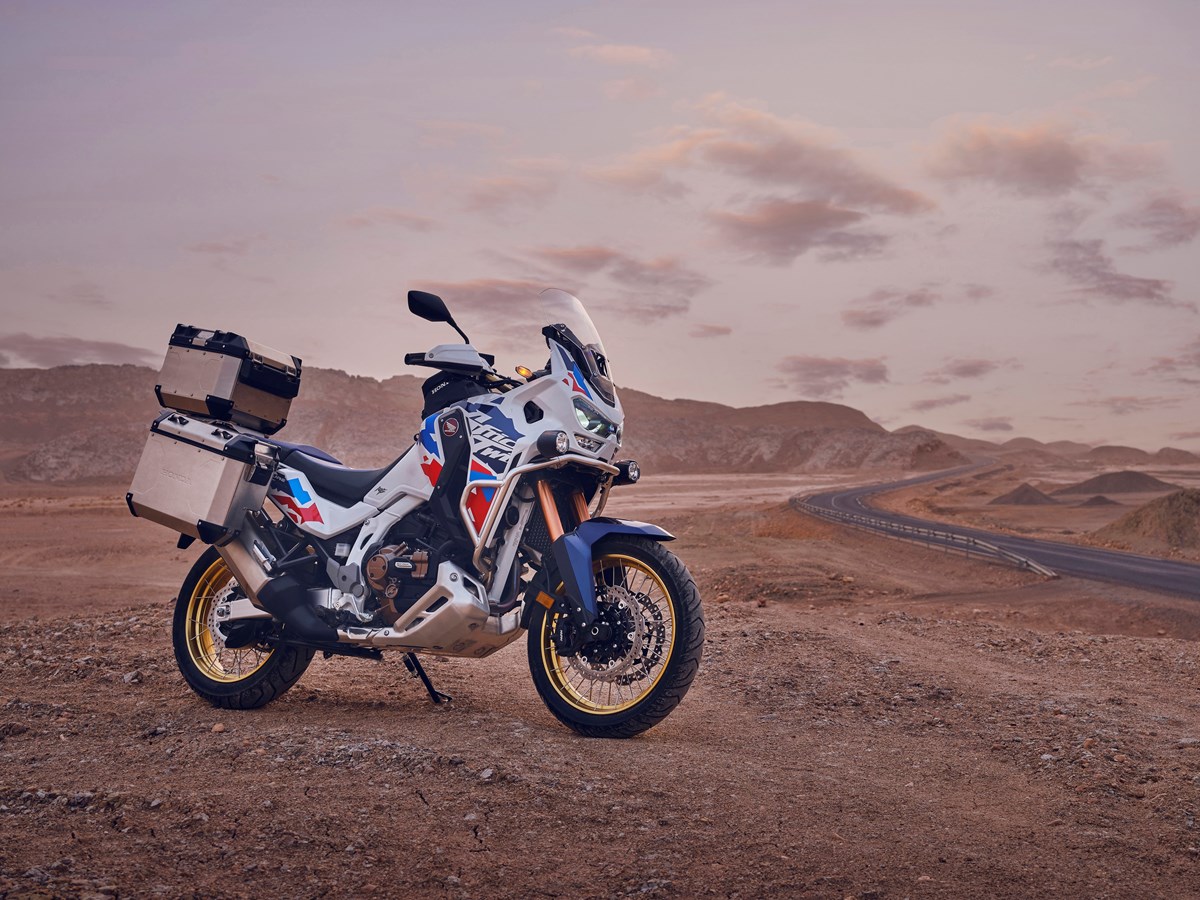

CRF1100A4 Africa Twin Adventure Sports E/S – 24YM

20,999

For 24YM the CRF1100L Africa Twin Adventure Sports will be available in the following paint options, that both feature bold big logo graphics. Matt Ballistic Black Metallic Pearl Glare White (Tricolour)

Description

ENGINE
TypeLiquid-cooled OHC 4-stroke 8-valve Parallel Twin with 270° crank and uni-cam
Displacement1084cc
Bore & Stroke92mm x 81.5mm
Compression Ratio10.5:1
Max. Power Output75kW at 7,500rpm
Max. Torque112Nm at 5,500rpm
Noise LevelMT: Lurban 75.0dB, Lwot 80.5dBDCT: Lurban 75.4dB, Lwot 80.4dB
Oil CapacityMT: 4.8LDCT: 5.2L
FUEL SYSTEM
CarburationPGM-FI
Fuel Tank Capacity24.8L
CO2 Emissions114g/km
Fuel ConsumptionMT: 20.5km/l [4.9 l/100km]DCT: 20.5km/l [4.9 l/100km]
ELECTRICAL SYSTEM
Battery Capacity12V-6Ah Li-ion BATTERY
DRIVETRAIN
Clutch TypeMT: Wet, multiplate with coil springs, Aluminium Cam Assist and Slipper clutchDCT: 2 wet, multiplate clutches with coil springs
Transmission Type6 speed manual (6 speed DCT)
Final DriveO-ring sealed chain
FRAME
TypeSemi double cradle
CHASSIS
Dimensions (L´W´H)2,305mm X 960mm X 1,475mm
Wheelbase1570mm
Caster Angle27.5°
Trail106mm
Seat Height835/855mm (low seat option 795mm)
Ground Clearance220mm
Kerb WeightMT: 243kgDCT: 253kg
Turning radius2.6M
SUSPENSION
Type FrontSHOWA Telescopic inverted fork with an inner tube diameter of 45mm, and an electronic control unit (SHOWA EERATM) with compression and rebound damping adjustments, 210mm stroke
Type RearMonoblock aluminium swing arm with Pro-Link with SHOWA gas-charged damper, hydraulic remote control preload adjuster and electronic control unit (SHOWA EERATM) with compression and rebound damping adjustments, 200 mm rear wheel travel.
WHEELS
Type Front19M/C x MT2.50 wire spoke with aluminium rim
Type Rear18M/C x MT4.00 wire spoke with aluminium rim
Tyres Front110/80-R19M/C 59V (Tubeless type) Bridgestone Battlax Adventure A41
Tyres Rear150/70-R18M/C 70H (Tubeless type) Bridgestone Battlax Adventure A41
BRAKES
ABS System Type2 channel with IMUSelectable ABS MODE with ON road and OFF road
Type Front310mm dual wave floating hydraulic disc with aluminium hub and radial fit 4-piston calipers and sintered metal pads
Type Rear256mm wave hydraulic disc with 2-piston caliper and sintered metal pads. 2-channel with rear ABS off mode.
INSTRUMENTS & ELECTRICS
InstrumentsLCD Meter, TFT 6.5inch touch panel multi information display
HeadlightLED
TaillightLED
Connectivity
USBYes
12V SocketYes
Auto Winker CancelYes
QuickshifterOptional (MT only)
Security SystemImmobiliser
Cruise ControlYes
Cornering LightsYes
Additional FeaturesEmergency stop signal, 6 axis IMU, HSTC and Wheelie Control
