Description

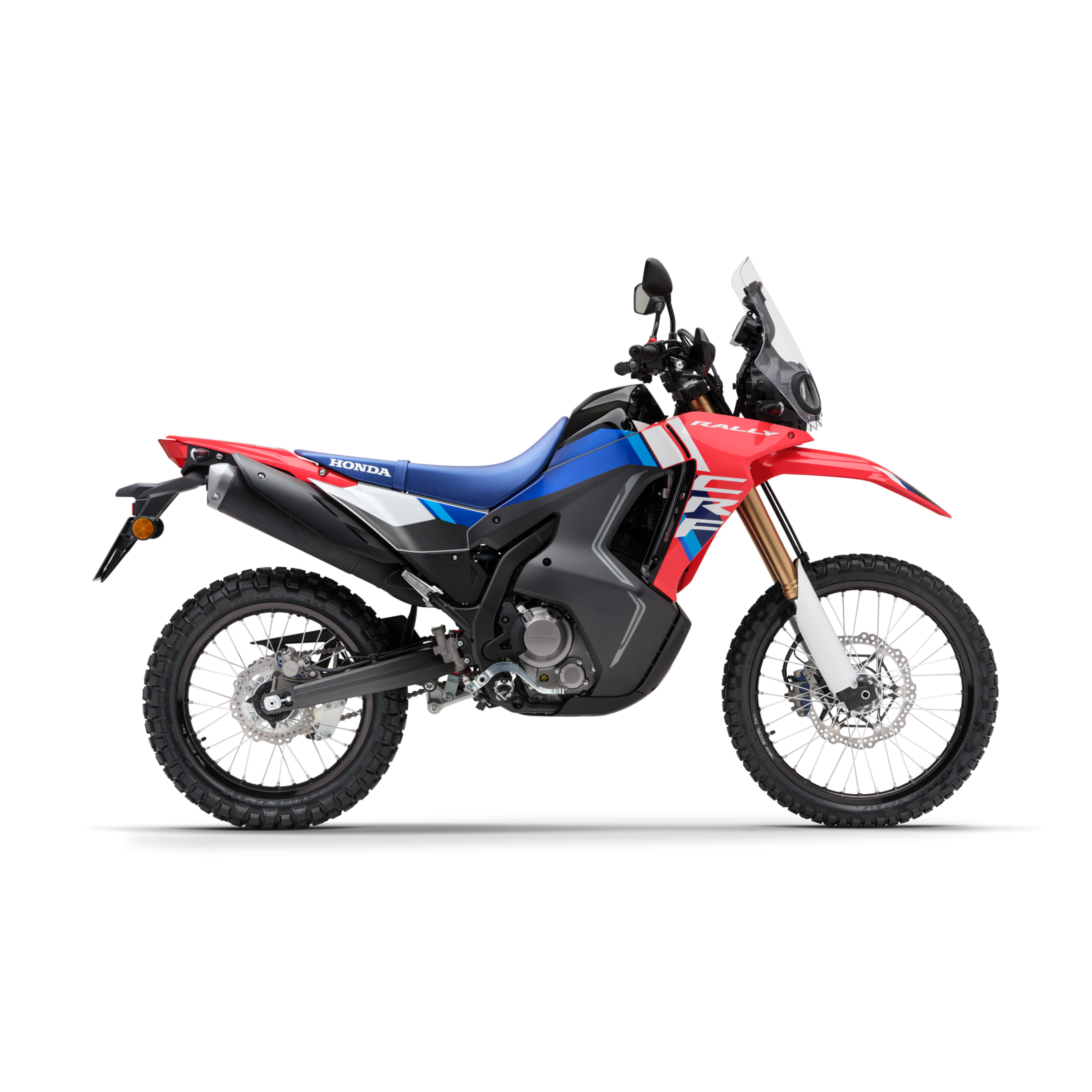

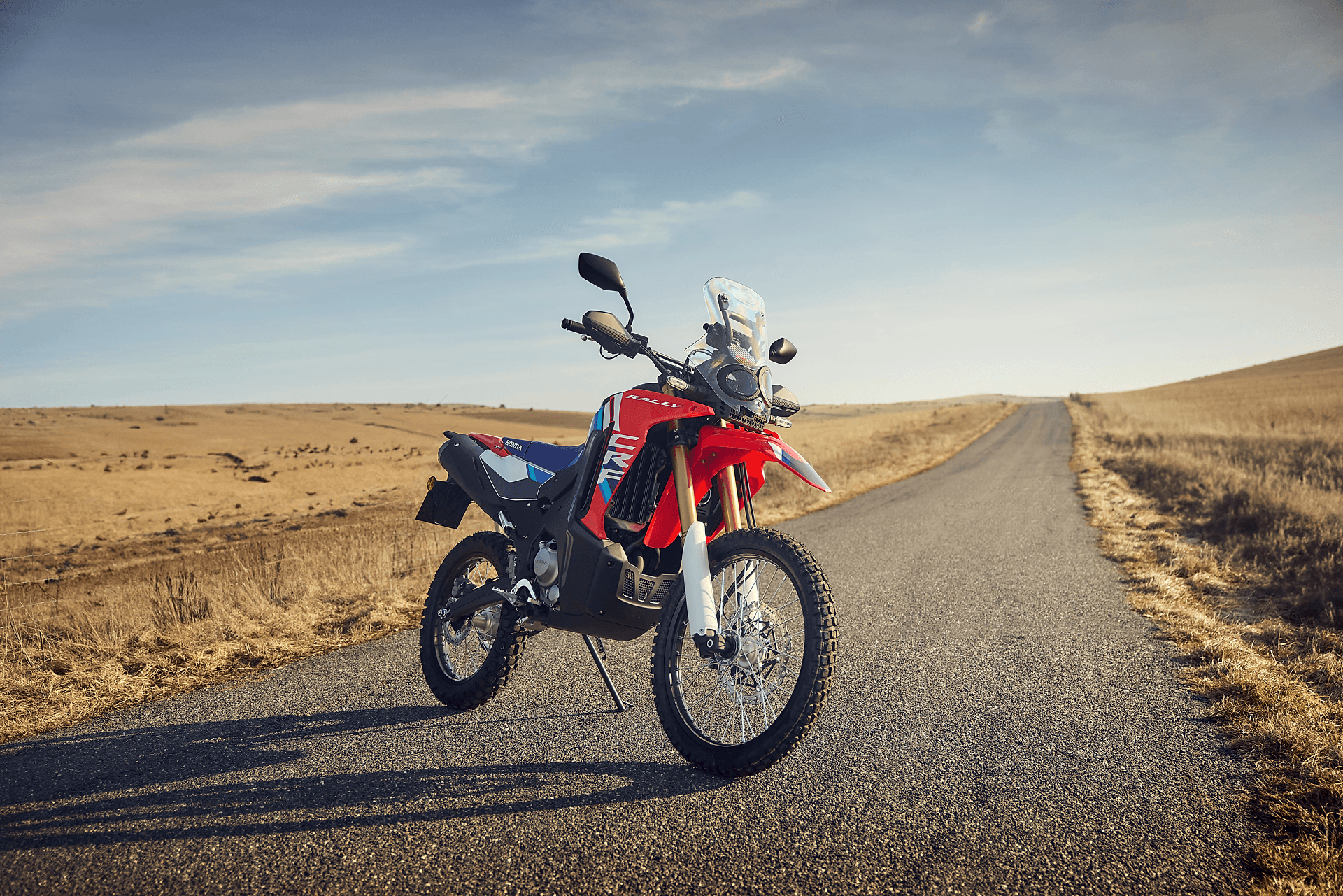

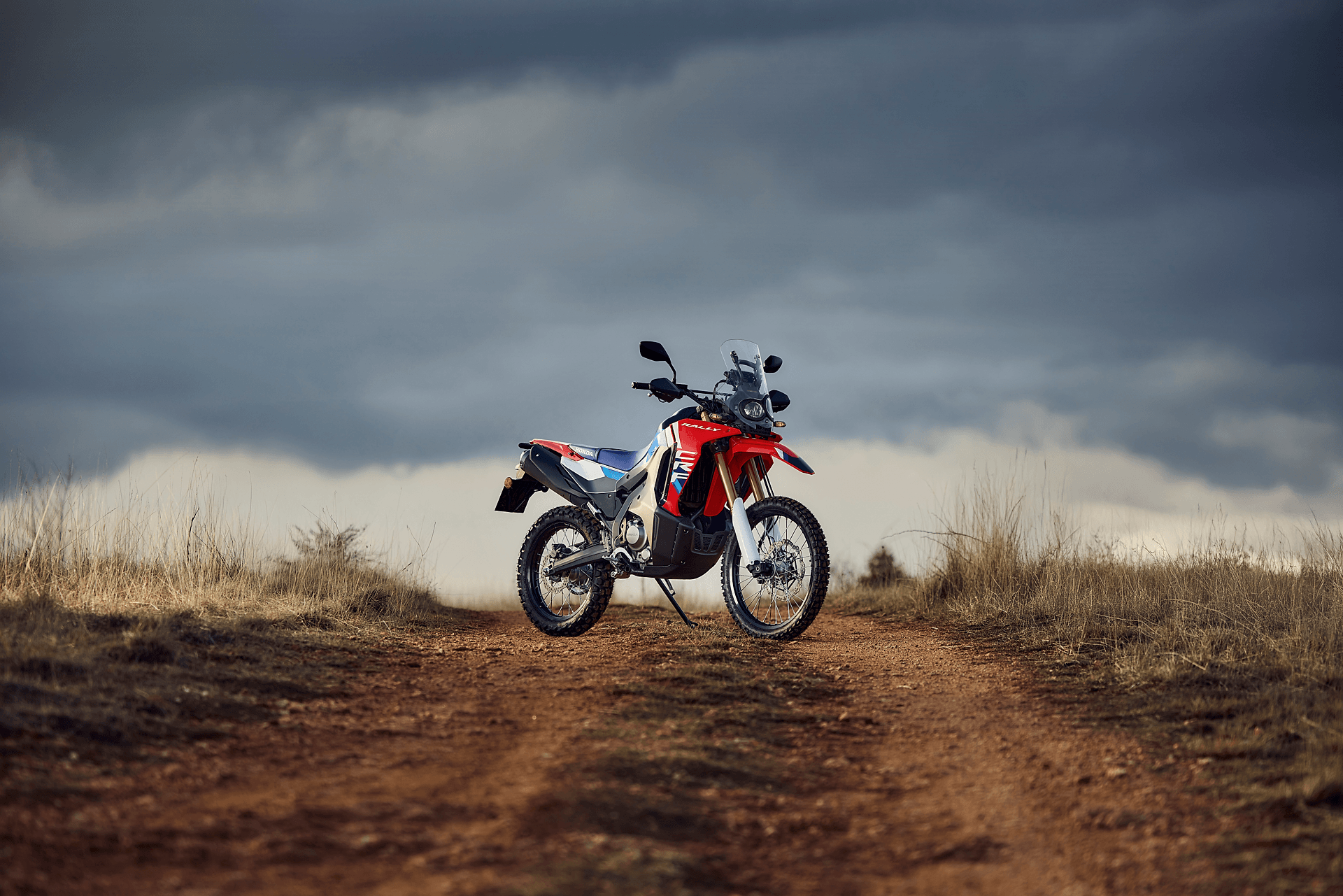

The Honda CRF300 RALLY is a dual-purpose adventure motorcycle inspired by rally-raid machines. Based on the CRF300L platform, it adds increased wind protection, larger fuel capacity, and long-distance touring capability while retaining off-road focus.
Engine
| Specification |
Detail |
| Engine type |
Liquid-cooled 4-stroke DOHC single-cylinder |
| Displacement |
286 cc |
| Bore x Stroke |
76.0 mm x 63.0 mm |
| Compression ratio |
10.7:1 |
| Fuel system |
PGM-FI electronic fuel injection |
| Max power |
20.1 kW @ 8,500 rpm |
| Max torque |
26.6 Nm @ 6,500 rpm |
| Starter |
Electric |
Drivetrain
| Specification |
Detail |
| Transmission |
6-speed manual |
| Clutch |
Assist/slipper clutch |

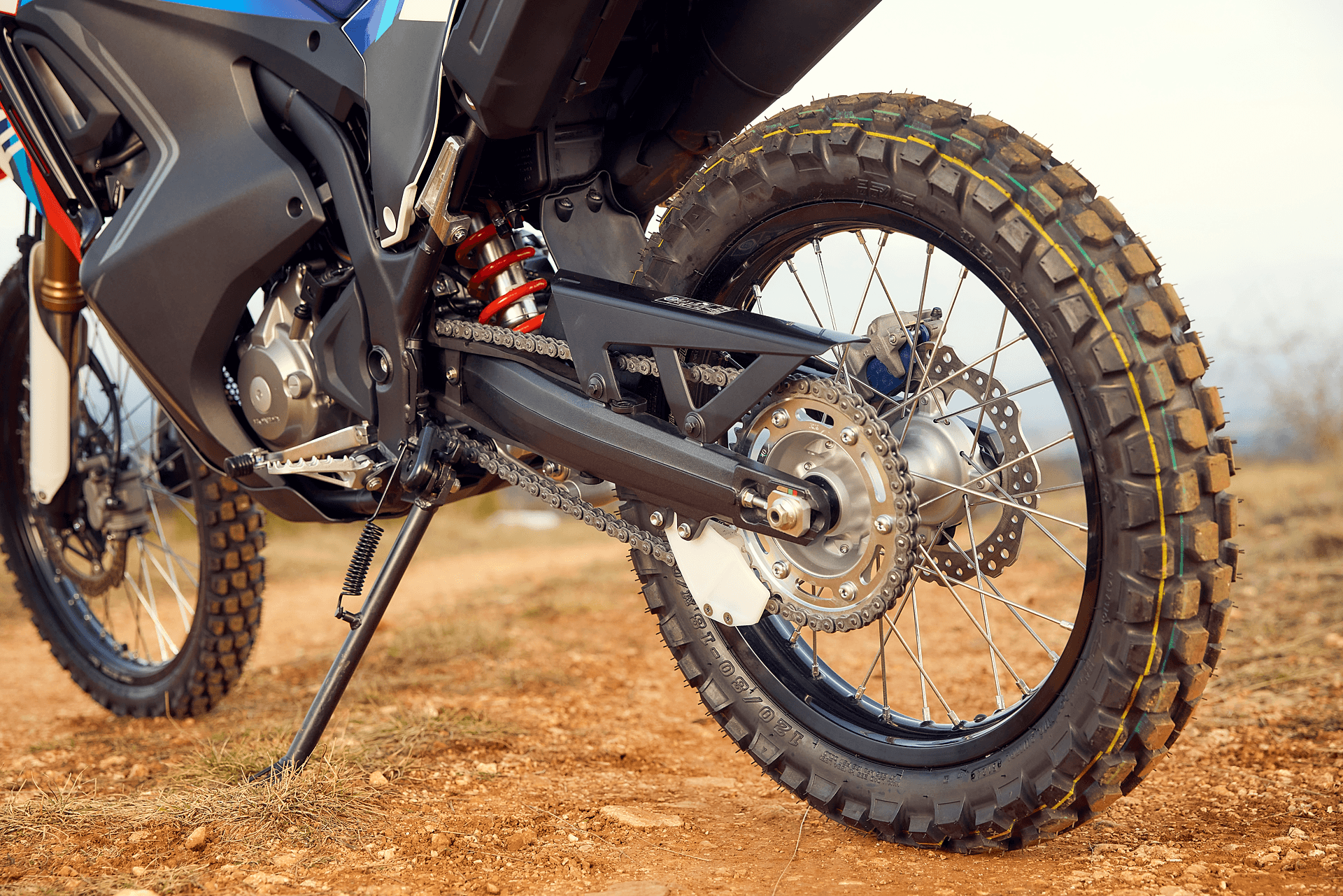

| Final drive |
Chain |
Chassis
| Specification |
Detail |
| Frame type |
Steel semi-double cradle |
| Front suspension |
43 mm inverted telescopic fork (long travel) |
| Rear suspension |
Pro-Link monoshock |
| Front brake |
256 mm disc |
| Rear brake |
220 mm disc |
| ABS |
Dual-channel ABS |
Wheels & Tyres
| Specification |
Detail |

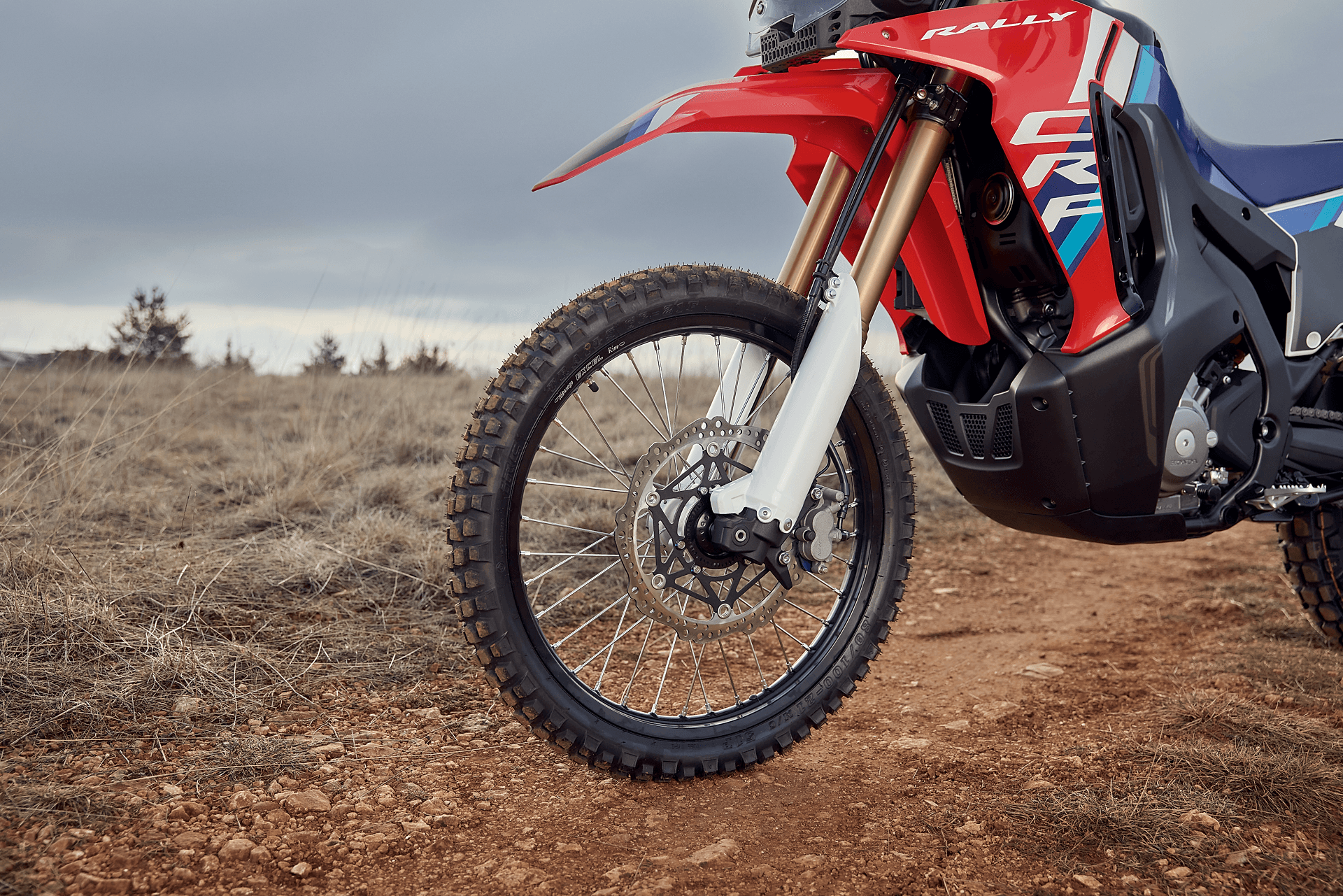

| Front wheel |
21-inch |
| Rear wheel |
18-inch |
| Front tyre |
80/100-21 |
| Rear tyre |
120/80-18 |
Dimensions & Weight
| Specification |
Detail |
| Length x Width x Height |
2,230 x 920 x 1,415 mm |
| Wheelbase |
1,455 mm |
| Seat height |
885 mm |
| Ground clearance |
275 mm |
| Kerb weight |
153 kg |
| Fuel tank capacity |
12.8 L |
| Additional fuel capacity |
7.8 L (Rally long-range tank) |
Performance & Economy
| Specification |
Detail |
| Fuel consumption |
3.1 L/100 km |
| CO₂ emissions |
73 g/km |
