Description

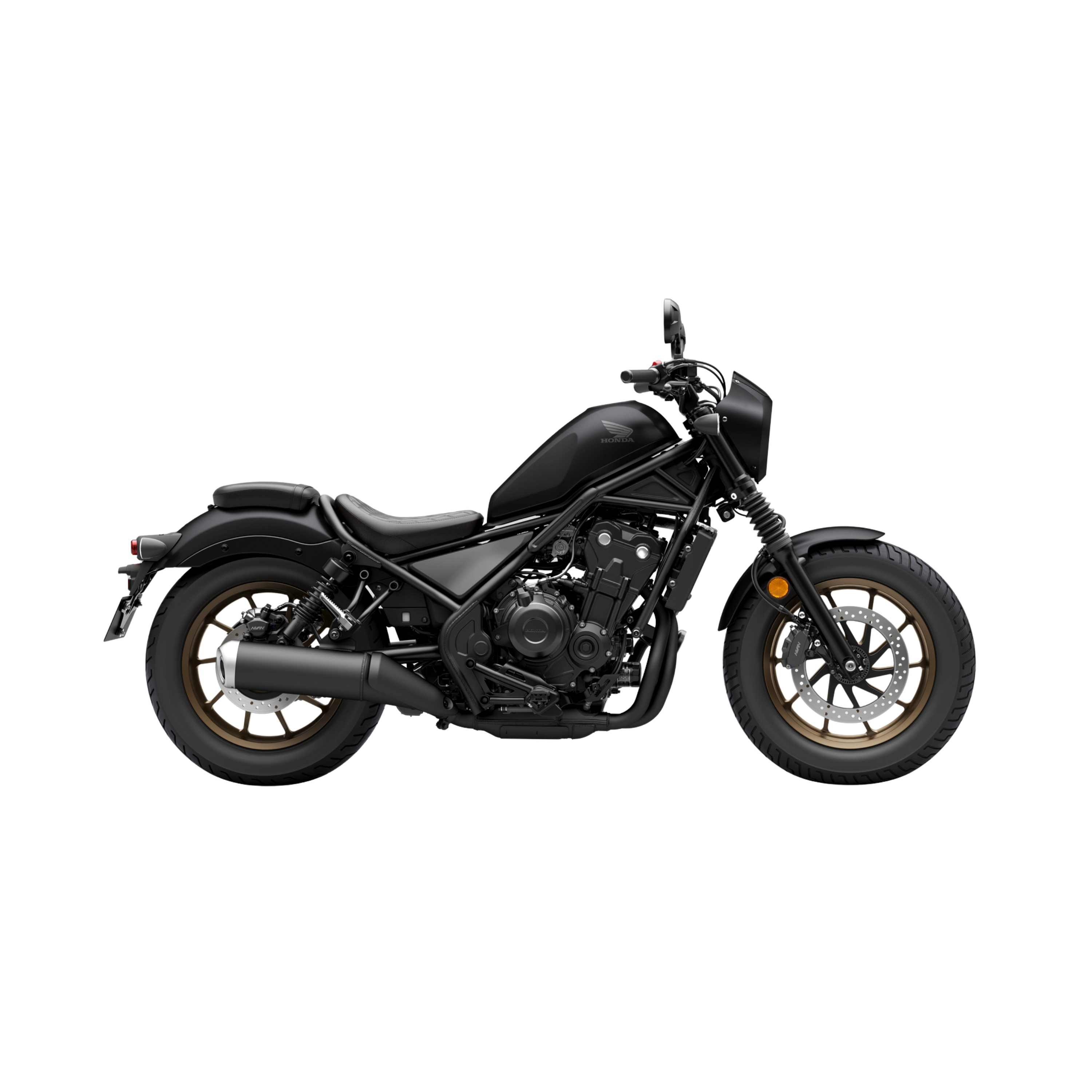

The Honda CMX500 Rebel is a cruiser-style motorcycle designed for relaxed road riding and everyday usability. Powered by a 471cc parallel twin-cylinder engine, it combines low-slung bobber-inspired styling with lightweight handling, accessible ergonomics, and modern rider technology.
The model features LED lighting, LCD instrumentation, assist & slipper clutch technology, and optional Special Edition (S Edition) equipment depending on specification.
Engine
| Specification |
Detail |
| Engine type |
Liquid-cooled 4-stroke 8-valve DOHC parallel twin |
| Displacement |
471 cc |
| Bore x Stroke |
67 mm x 66.8 mm |
| Compression ratio |
10.7 |
| Fuel system |
PGM-FI electronic fuel injection |
| Max power |
34 kW @ 8,500 rpm |
| Max torque |
43.3 Nm @ 6,000 rpm |
| Starter |
Electric |
| CO₂ emissions |
84 g/km |
| Oil capacity |
3.2 L |
Drivetrain
| Specification |
Detail |
| Transmission |
6-speed manual |
| Clutch |
Assist & slipper clutch |
| Final drive |
Chain |
Chassis
| Specification |
Detail |
| Frame type |
Steel tubular frame |
| Front suspension |
41 mm telescopic fork |
| Rear suspension |
Twin rear shock absorbers |
| Front brake |
296 mm hydraulic disc |
| Rear brake |
240 mm hydraulic disc |
| ABS |
Dual-channel ABS |
Wheels & Tyres
| Specification |
Detail |
| Front wheel |
16-inch |
| Rear wheel |
16-inch |
| Front tyre |
130/90-16 |
| Rear tyre |
150/80-16 |
Dimensions & Weight
| Specification |
Detail |
| Length x Width x Height |
2,205 x 820 x 1,090 mm |
| Wheelbase |
1,490 mm |
| Seat height |
690 mm |
| Ground clearance |
125 mm |
| Kerb weight |
191 kg |
| Fuel tank capacity |
11.2 L |
| Caster angle |
28° |
| Trail |
110 mm |
Performance & Economy
| Specification |
Detail |
| Fuel consumption |
3.6 L/100 km |
| CO₂ emissions |
84 g/km |
Technology & Equipment
| Specification |
Detail |

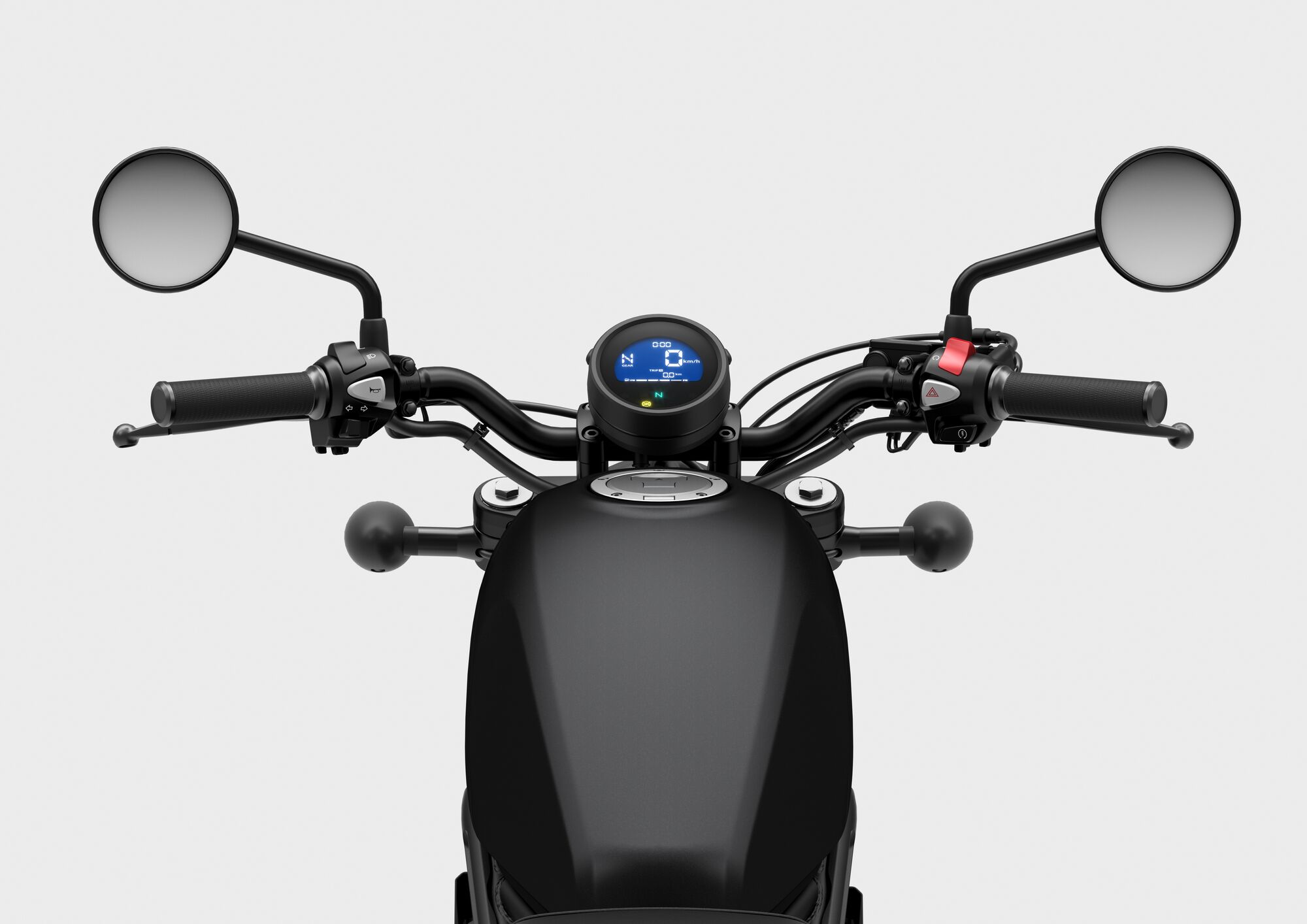

| Display |
Negative LCD instrument display |
| Lighting |
Full LED lighting |
| Security |
HISS immobiliser |
| Instruments |
Speedometer, gear indicator, fuel gauge, clock |
| Styling |
Bobber-inspired cruiser styling |

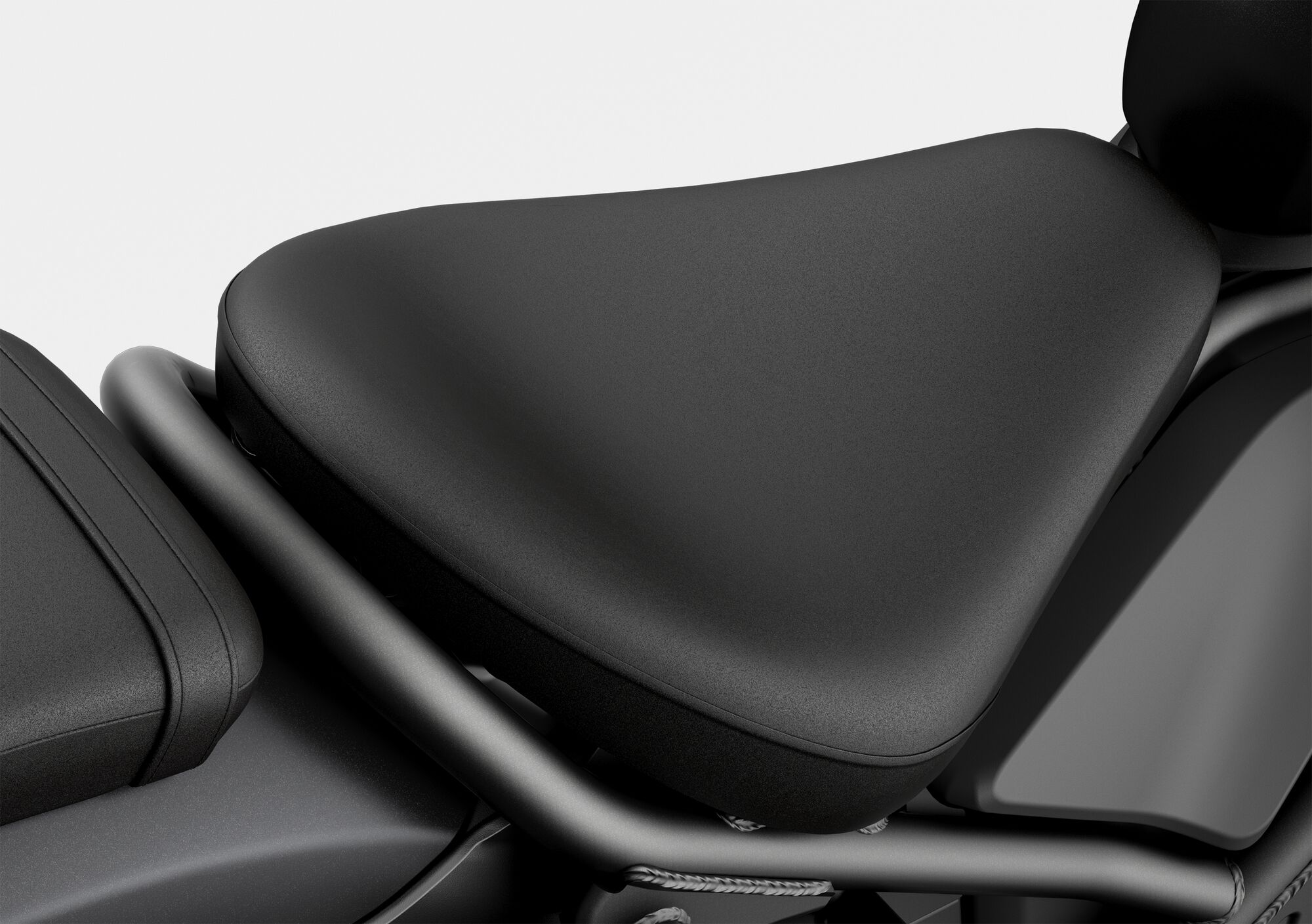

| Seat |
Low rider seat |
