Description

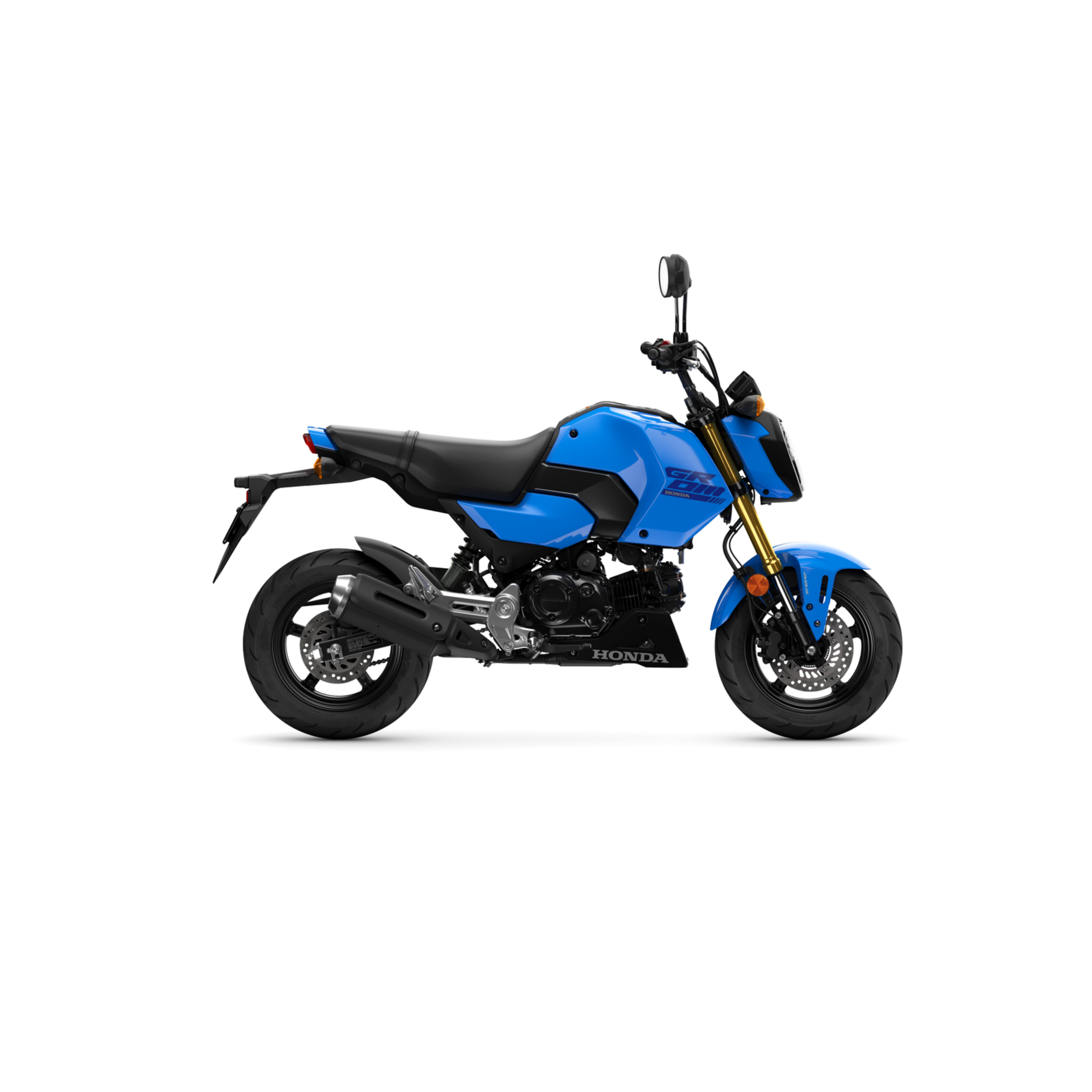

The Honda MSX125 Grom is a compact 125cc motorcycle designed for urban riding and ease of use. It features a lightweight chassis, upright riding position, and a simple air-cooled single-cylinder engine paired with a 5-speed gearbox.
Engine
| Specification |
Detail |
| Engine type |
Air-cooled 4-stroke SOHC single-cylinder |
| Displacement |
124 cc |
| Bore x Stroke |
50.0 mm x 63.1 mm |
| Compression ratio |
10.0:1 |
| Fuel system |
PGM-FI electronic fuel injection |
| Max power |
7.3 kW @ 7,250 rpm |
| Max torque |
10.8 Nm @ 6,000 rpm |
| Starter |
Electric |
| CO₂ emissions |
35.1 g/km |
| Oil capacity |
1.1 L |
Drivetrain
| Specification |
Detail |
| Transmission |
5-speed manual |
| Clutch |
Wet multiplate |
| Final drive |
Chain |
Chassis
| Specification |
Detail |
| Frame type |
Steel mono-backbone frame |
| Front suspension |
31 mm upside-down telescopic fork |
| Rear suspension |
Mono-shock |
| Front brake |
220 mm disc, dual-piston caliper |
| Rear brake |
190 mm disc, single-piston caliper |
| ABS |
Single-channel ABS |
Wheels & Tyres
| Specification |
Detail |
| Front wheel |
12-inch |
| Rear wheel |
12-inch |
| Front tyre |
120/70-12 |
| Rear tyre |
130/70-12 |
Dimensions & Weight
| Specification |
Detail |
| Length x Width x Height |
1,760 x 720 x 1,015 mm |
| Wheelbase |
1,200 mm |
| Seat height |
761 mm |
| Ground clearance |
180 mm |
| Kerb weight |
103 kg |
| Fuel tank capacity |
6.0 L |
| Turning radius |
1.9 m |
Performance & Economy
| Specification |
Detail |
| Fuel consumption |
66.7 km/l |
| CO₂ emissions |
35.1 g/km |
Technology & Equipment
| Specification |
Detail |
| Lighting |
LED headlight and tail light |
| Instrument display |
LCD digital display |
| ABS |
Standard (single-channel) |
| Instruments |
Speedometer, fuel gauge, trip meters, clock |
