Honda SH125i – 23YM


Comfort, convenience and economy, together with strong performance to move you swiftly through the city streets. The SH125i is ready to go.

This model comes with top box and screen.

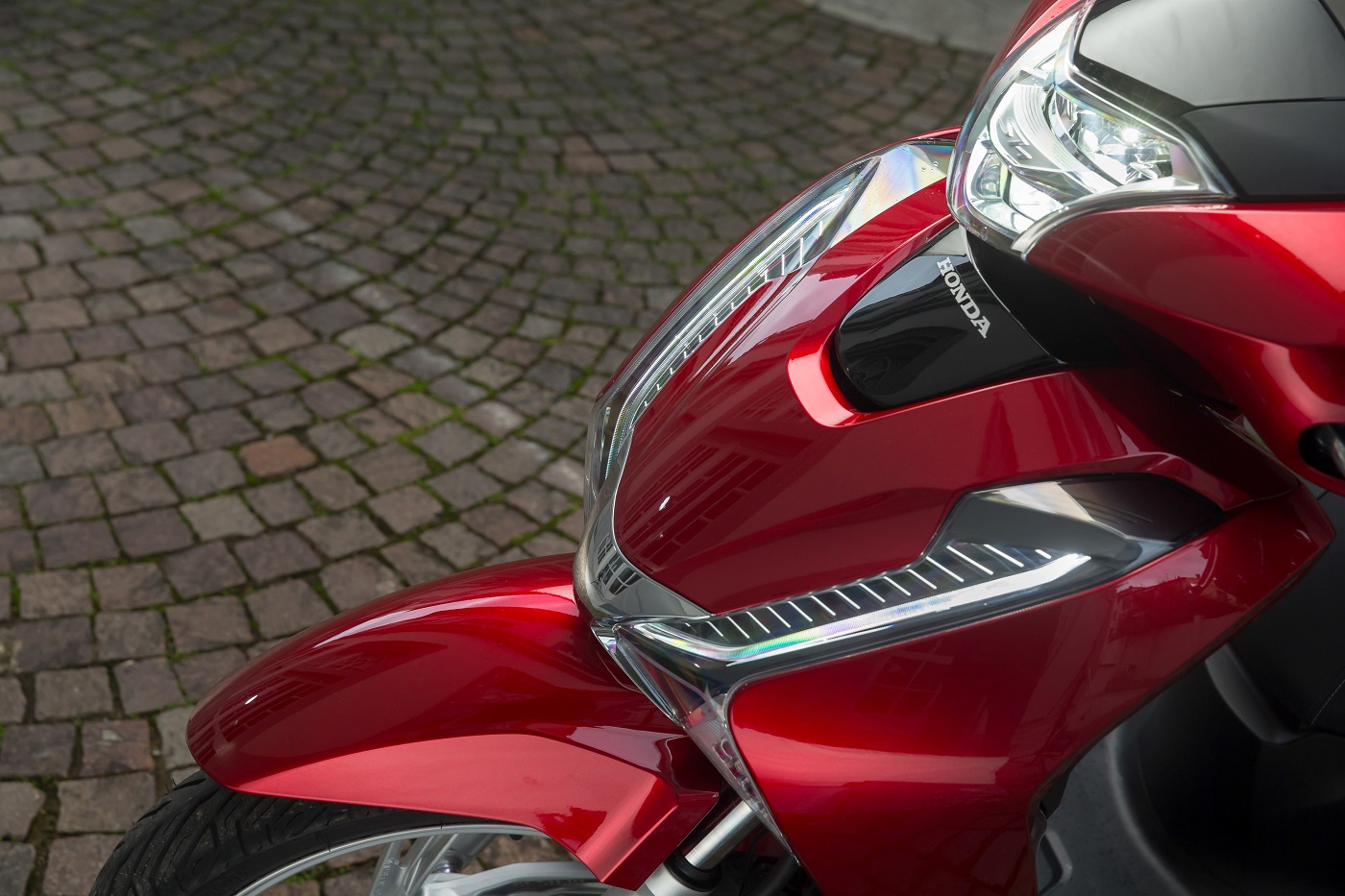

  • Leading the way: The SH125i remains faithful to the SH family style, and now comes with LED lights at the front and rear. They provide much better visibility for the rider, making absolutely sure you can see, as well as be seen.
  • Firm control: Lightweight 16″ aluminium die-cast wheels, combined with ABS braking system, are key to sure-footed handling and stability as you ride across ever-changing road surfaces.
  • Keyless Feature: The Honda Smart key system operates ignition, fuel cap and seat lock at the touch of a button. It has two switches: the smart function on/off and ‘answer back’, which blips the indicators for Keyless feature identification.

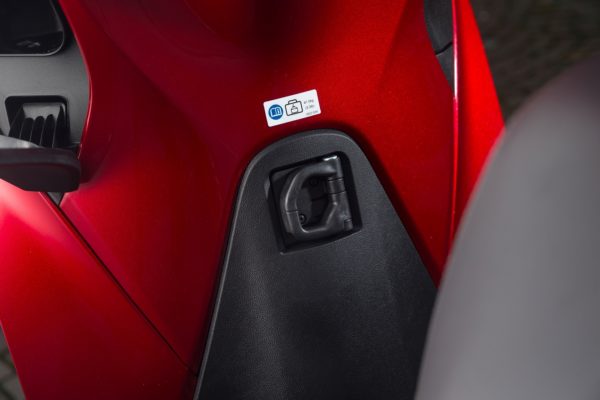

  • Always practical: The secure under seat storage is a real bonus when you’re running around town. Park up, flip up the seat, pack away the helmet and you’re free to go.
  • Taking charge: Constant communication, the need for information and map locations can soon leave your mobile device completely drained. Not anymore, because the large glove box hides a handy 12V AC socket to recharge your batteries when you’re on the move.



Bore × Stroke (mm) 52.4 x 57.9
Carburation PGM-FI electronic fuel injection
Compression Ratio 11.0:1
Engine Displacement (cc) 124.9cc
Engine Type (cm³) Liquid-cooled 4-stroke SOHC single
Max. Power Output 8.98kW/8,500rpm
Max. Torque 11.5Nm/7,000rpm
Oil Capacity (Litres) 0.9L
Starter Electric


Suspension Front Telescopic Φ33
Suspension Rear Dual-damper unit swing arm
Tyre Size Front 100/80-16 inch
Tyre Size Rear 120/80-16 inch
Wheels Front 16M/C x MT2.50
Wheels Rear 16M/C x MT2.75

Dimensions and Weights

Battery Capacity (VAh) YTZ8V 7Ah MF
Caster Angle 26°
Dimensions (L×W×H) (mm) 2,034mm x 740mm x 1,158mm
Frame type Tubular Steel Underbone
Fuel Tank Capacity (Litres) 7.5L
Fuel Consumption 47.4km/litre
Ground Clearance (mm) 144mm
Kerb Weight (kg) 136.9kg
Seat Height (mm) 799mm
Trail (mm) 85.2mm
Wheelbase (mm) 1340mm


Clutch Automatic; centrifugal
Final Drive V-Belt
Transmission Type CVT

Instruments and Electrics

12v Socket Yes
Headlights LED
Instruments Honda Smart Key, 12V socket
Tail Light LED
